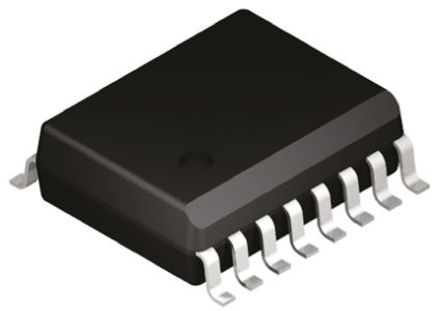

Image is for your reference only,please check specifications for details
- MAX1619MEE+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC32550803
-
Category:Temperature Sensor
-
Package:QSOP-16
-
Datasheet:Datasheet 3D Model
-
Description:MAXIM INTEGRATED PRODUCTS MAX1619MEE+ Temperature Sensor IC, SMBus Serial, Digital, ± 5℃, -55℃, 125℃, QSOP, 16Pins
-
Stock Locations:
-
Availability:111 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 18.8
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MAX1619MEE+ is a remote/local temperature sensor with dual alarm outputs and SMBus serial interface in 16 pin QSOP package. This precise digital thermometer reports temperature of both remote sensor and its own package. The remote sensor is a diode connected transistor of typically low cost and easily mounted 2N3904 NPN type that replaces conventional thermistors or thermocouples. Remote accuracy is ±3°C for multiple transistor manufacturers with no calibration needed. The 2-wire serial interface accepts SMBus write byte, read byte, send byte and receive byte commands to program alarm thresholds and to read temperature data. The data format is 7 bits plus sign with each bit corresponding to 1°C in two"s complement format. The MAX1619 is nearly identical to popular MAX1617A with additional feature of an overtemperature alarm output (active-low OVERT) that responds to remote temperature. It is used in central office telecom equipments, test and measurement & multichip modules.
- Supply voltage range from 3V to 5.5V
- Operating temperature range from -55°C to 125°C
- Two channels measure both remote and local temperatures
- Remote channel measures die temperature of other ICs such as microprocessors
- Programmable under/overtemperature alarms
- Supports SMBus alert response and supports manufacturer and device ID codes
- Accuracy of ±2°C (60°C to 100°C, local), ±3°C (-40°C to 125°C, local) & ±3°C (60°C to 100°C, remote)
- 3µA standby supply current and 70µA maximum supply current in auto convert mode
- 8bit temperature resolution
- Conversion time of 125ms at TA = 0°C to +85°C
MAX1619MEE+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | QSOP-16 |
| Supply Voltage (DC) | 3.00V (min) |
| Number of Positions | 16 Position |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Supply Voltage | 3V ~ 5.5V |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 3 V |
| Show | |
| Size-Length | 4.98 mm |
| Size-Width | 3.99 mm |
| Size-Height | 1.55 mm |
| Operating Temperature | -55℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
