MAX1626 - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC390405600
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
5V/3.3V or Adjustable, 100% Duty Cycle, High-Efficiency, Step-Down DC-DC ControllersEfficient, Low-Cost, Step-Down Controllers Ideally Suitable for 1.5V CPU I/O Power
Stock Locations:
Availability:
245 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description

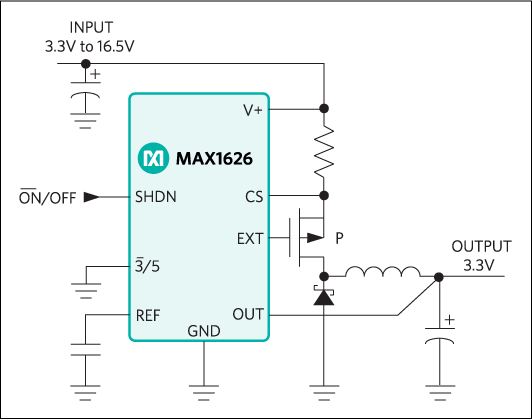

The MAX1626/MAX1627 step-down DC-DC controllers operate over a 2.6V to 16.5V input voltage range. The controllers deliver load current from 1mA to more than 2A. The MAX1626 has pin-selectable 3.3V and 5V outputs. The MAX1627 supports adjustable outputs from 1.3V to 16V.
A unique current-limited, pulse-frequency-modulation (PFM) control scheme operates up to 100% duty cycle, resulting in very low dropout voltage. This control scheme eliminates minimum load requirements and reduces supply current under light loads to 90µA (versus 2mA to 10mA for common pulse-width modulation controllers).
The devices are available in a 8-pin SOIC package (-40°C to +85°C) and dice (0°C to +70°C).

Show

MAX1626 Specifications
