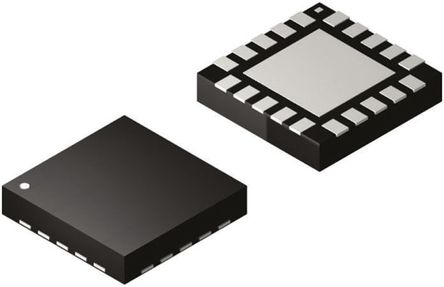

Image is for your reference only,please check specifications for details
- MAX4896ETP+ - Maxim Integrated
-
Manufacturer:Maxim Integrated
-
ManyChip's Part#:MC13312224
-
Category:FET Driver
-
Package:TQFN-20
-
Datasheet:Datasheet 3D Model
-
Description:Maxim MAX4896ETP+, Octal MOSFET Power Driver,, 2.7 → 5.5V, 20Pin TQFN
-
Stock Locations:
-
Availability:222 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.19
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MAX4896ETP+ is a space saving, 8-channel relay/load driver in 20 pin TQFN package. It is an 8-channel relay and load driver is designed for medium voltage applications up to 50V. The MAX4896 8-channel relay driver offers built-in inductive kickback protection, drive for latching/nonlatching or dual-coil relays and open-load and short circuit fault detection. The MAX4896 also protects against overcurrent conditions. Each independent open-drain output features a 3ohm (typ) on-resistance and has to sink 200mA of load current (VS >= 4.5V). A built-in overvoltage protection clamp handles kickback voltage transients which are common when driving inductive loads. Thermal shutdown circuitry shuts off all outputs (OUT_) when the junction temperature exceeds +160°C. The MAX4896 employs a reset input that allows the user to turn off all outputs simultaneously with a single control line. The MAX4896 includes a 10MHz SPI-/QSPI-/MICROWIRE compatible serial interface.
- Supply voltage range is 2.7V to 5.5V
- Operating temperature range from -40°C to 85°C
- Compatible with TTL/CMOS logic voltage levels
- Serial digital output for daisy chaining and diagnostics
- FLAG output for microprocessor interrupt
- Open load and short circuit detection protection
- Thermal shutdown
- Low quiescent supply current is 100µA (max)
MAX4896ETP+ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TQFN-20 |
| Supply Voltage (DC) | 2.70V (min) |
| Number of Outputs | 8 Output |
| Output Current | 200 mA |
| Number of Positions | 20 Position |
| Power Dissipation | 1702 mW |
| Output Current (Max) | 410 mA |
| Fall Time | 2 µs |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Max) | 5.5 V |
| Supply Voltage (Min) | 2.7 V |
| Show | |
| Size-Length | 5.1 mm |
| Size-Width | 5.1 mm |
| Size-Height | 0.75 mm |
| Operating Temperature | -40℃ ~ 85℃ (TA) |
| Product Lifecycle Status | Active |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
