MAX6642 - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC432025221
Package:
TDFN-6
Datasheet:
Datasheet 3D Model
Description:
±1℃, SMBus-Compatible Remote/Local Temperature Sensor with Overtemperature AlarmIndustry"s Smallest ±1℃, SMBus-Compatible Remote/Local Temperature Sensor with Overtemperature Alarm
Stock Locations:
Availability:
318 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 03/05/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description

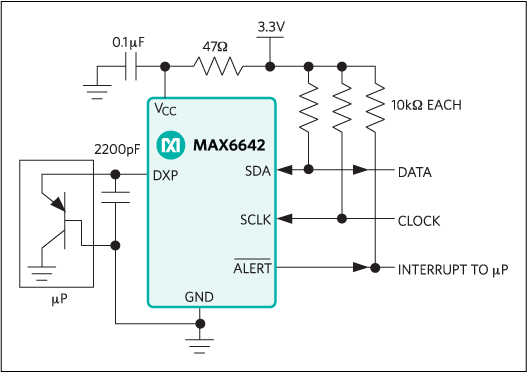

The MAX6642 precise, two-channel digital temperature sensor accurately measures the temperature of its own die and a remote PN junction and reports the temperature data over a 2-wire serial interface. The remote PN junction is typically a substrate PNP transistor on the die of a CPU, ASIC, GPU, or FPGA. The remote PN junction can also be a discrete diode-connected small-signal transistor.
The 2-wire serial interface accepts standard system management bus (SMBus™), Write Byte, Read Byte, Send Byte, and Receive Byte commands to read the temperature data and to program the alarm thresholds. To enhance system reliability, the MAX6642 includes an SMBus timeout. The temperature data format is 10 bits with the least significant bit (LSB) corresponding to +0.25°C. The active-low ALERT output asserts when the local or remote overtemperature thresholds are violated. A fault queue can be used to prevent the active-low ALERT output from setting until two consecutive faults have been detected.
Measurements can be done autonomously or in a single-shot mode.
Remote accuracy is ±1°C maximum error between +60°C and +100°C. The MAX6642 operates from -40°C to +125°C, and measures remote temperatures between 0°C and +150°C. The MAX6642 is available in a 6-pin TDFN package with an exposed pad.
