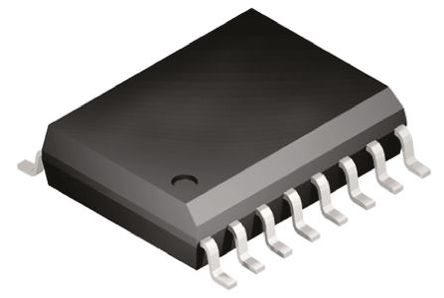

MAX691EWE+ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	16 Pin
Case/Package	SOIC-16
Supply Voltage (DC)	5.50V (max)
Power Rating	600 mW
Supply Current	3.50 mA
Number of Positions	16 Position
Clock Speed	252 kHz
Power Dissipation	600 mW
Threshold Voltage	4.65 V
Output Current (Max)	20 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	4.75.5.5 VDC
Supply Voltage (Max)	5.5 V
Supply Voltage (Min)	4.75 V
	Show
Size-Length	10.5 mm
Size-Width	7.6 mm
Size-Height	2.35 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
