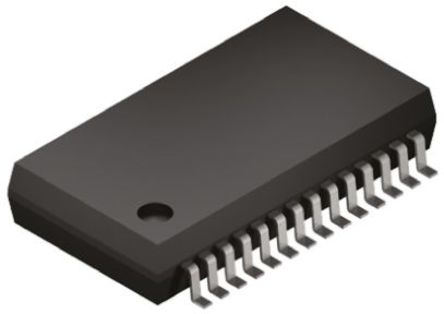

MAX6957AAI+ - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC42356293
Category:
LED Driver, LED Display Driver
Package:
SSOP-28
Datasheet:
Datasheet 3D Model
Description:
4-Wire-Interfaced, 2.5V to 5.5V, 20Port and 28Port LED Display Driver and I/O Expander
Stock Locations:
Availability:
268 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 14.52

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MAX6957AAI+ is a 4-wire-interfaced, 2.5V to 5.5V, 20 port LED display driver and I/O expander in 28 pin SSOP package. Each port is individually user configurable to a logic input, logic output or common-anode (CA) LED constant-current segment driver. Each port configured as an LED segment driver behaves as a digitally controlled constant current sink with 16 equal current steps from 1.5mA to 24mA. The LED driver is suitable for both discrete LEDs and CA numeric and alphanumeric LED digits. Each port configured as a GPIO can be either a push-pull logic output capable of sinking 10mA and sourcing 4.5mA or a Schmitt logic input with optional internal pull-up. Seven ports feature configurable transition detection logic which generates an interrupt upon change of port logic level. Device is used in set-top boxes, white goods and bar graph displays.
High speed 26MHz SPI / QSPI/ MICROWIRE compatible serial interface
Operating temperature range from -40°C to 125°C
Maximum shutdown current is 11µA at TA = TMIN to TMAX
16-step individually programmable current control for each LED
Logic transition detection for seven I/O ports
Minimum CLK clock period is 38.4ns

Show

MAX6957AAI+ Specifications
