MAX9867 - Maxim Integrated
Manufacturer:
Maxim Integrated
ManyChip's Part#:
MC481503972
Package:
TQFN-32
Datasheet:
Datasheet 3D Model
Description:
Low-Power, Stereo Audio CodecUltra-Low-Power, Stereo Audio Codec Integrates Auxiliary Battery-Measurement ADC and Capacitorless Headphone Amps
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0

Updated at 03/05/2026 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

General Description

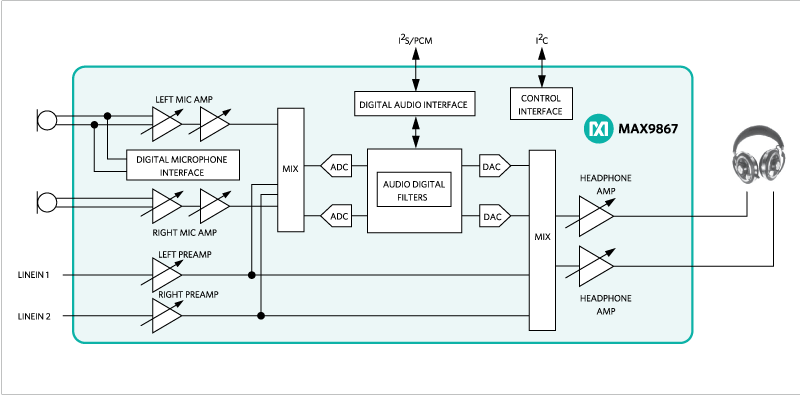

The MAX9867 is an ultra-low power stereo audio codec designed for portable consumer devices such as mobile phones and portable gaming consoles.
Features
♦1.8V Single-Supply Operation
♦6.7mW Playback Power Consumption
♦90dB Stereo DAC, 8kHz ≤fs ≤48kHz
♦85dB Stereo ADC, 8kHz ≤fs ≤48kHz
♦Battery-Measurement Auxiliary ADC
♦Support for Any Master Clock Between 10MHz to 60MHz
♦Stereo Digital Microphone Input Support
♦Stereo Analog Differential Microphone Inputs
♦Stereo Headphone Amplifiers: Differential, Single-Ended, or Capacitorless
♦Stereo Line Inputs
♦Voiceband Filter with a Stopband Attenuation Greater than 70dB
♦1.65V to 3.6V Digital Interface Supply Voltage
♦I2S/TDM-Compatible Digital Audio Bus
♦30-Bump, 2.2mm x 2.7mm 0.4mm-Pitch WLP
Applications
Cell Phones
Portable Gaming Devices
Portable Navigation Devices
Portable Multimedia Players
Wireless Headsets
