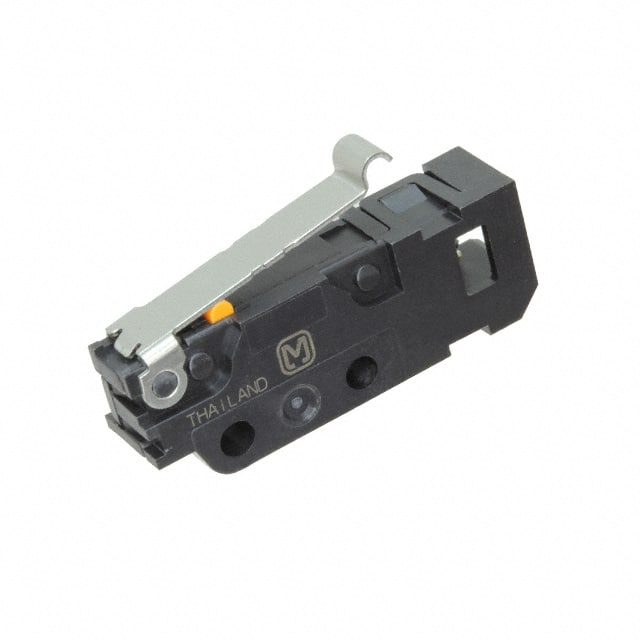

Image is for your reference only,please check specifications for details
- AV634564 - Panasonic
-
Manufacturer:Panasonic
-
ManyChip's Part#:MC130075443
-
Category:Switch
-
Package:-
-
Datasheet:Datasheet 3D Model
-
Description:Switch Snap Action N.O. SPST Simulated Roller Lever Connector 0.1A 30VDC 0.5N Screw Mount Carton
-
Stock Locations:
-
Availability:278 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 4.69
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- AV634564 is manufactured by Panasonic Electric and is categorized in the Snap Action, Limit Switches category. AV634564 is described as SWITCH SNAP ACTION SPST-NO 100MA. Perfect Parts is a supplier of Switches and other Electromechanicals.
AV634564 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Case/Package | - |
| Voltage Rating (DC) | 30 V |
| Current Rating | 100mA (DC) |
| Current Rating (Max) | 0.1A @30VDC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Voltage Rating (DC Max) | 30 V |
| Show | |
| Size-Length | 29.2 mm |
| Size-Height | 17.1 mm |
| Contact Material | Copper Alloy |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Carton |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
