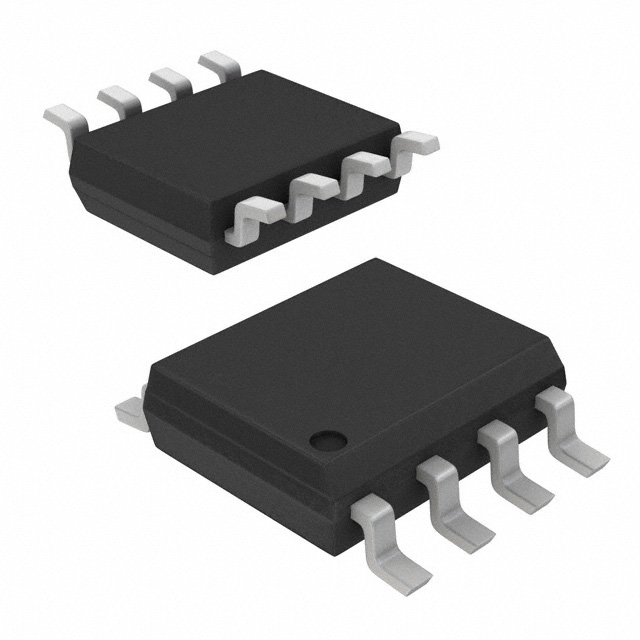

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Description
The FAN7602B is a green current-mode PWM controller. It is specially designed for off-line adapter applications; DVDP, VCR, LCD monitor applications; and auxiliary power supplies.
The internal high-voltage start-up switch and the burst mode operation reduce the power loss in standby mode. As a result, it is possible to supply 0.5W load, limiting the input power under 1W when the input line voltage is 265VAC. On no-load condition, input power is under 0.3W. The maximum power can be limited constantly, regard less of the line voltage change, using the power limit function. The switching frequency is internally fixed at 65kHz. The FAN7602B includes various protections for the system reliability and the internalsoft-start prevents the output voltage over-shoot at start-up.
Features
Green Current-Mode PWM Control
Fixed 65kHz Operation
Internal High-Voltage Start-up Switch
Burst-Mode Operation
Line Voltage Feedforward to Limit Maximum Power
Line Under-Voltage Protection
Latch Protection & Internal Soft-Start (10ms) Function
Overload Protection
Over-Voltage Protection
Low Operation Current: 1mA Typical
8-pin DIP/SOP

Show

FAN7602BMX Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Power Rating	48 W
Number of Outputs	1 Output
Output Voltage	12 V
Supply Current	1.00 mA
Power Dissipation	1200 mW
Rise Time	45 ns
Switching Frequency	65 kHz
Duty Cycle	75 %
Maximum Duty Cycle	80 %
Fall Time	35 ns
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-25 ℃
Power Dissipation (Max)	1200 mW
Input Voltage	8V ~ 20V
	Show
Size-Height	1.5 mm
Operating Temperature	-25℃ ~ 125℃ (TA)
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ECCN Code	EAR99
