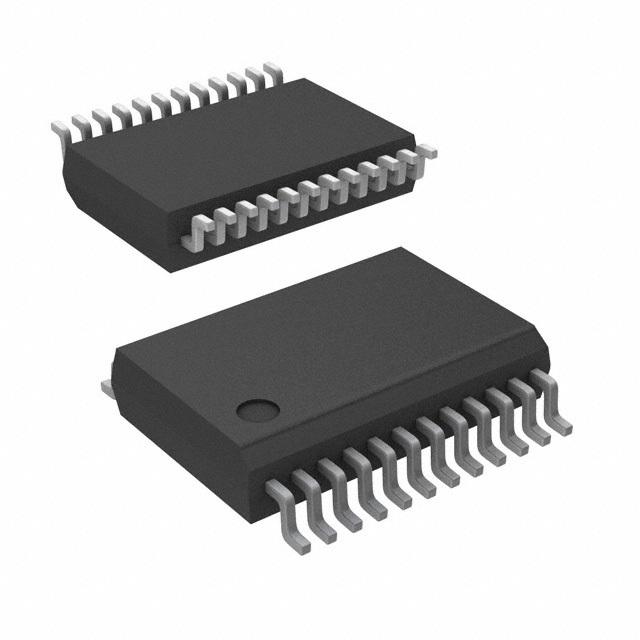

DAC7731E - TI
Manufacturer:
TI
ManyChip's Part#:
MC9977266
Category:
Digital to Analog, DAC IC
Package:
SSOP-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS DAC7731E Digital to Analogue Converter, 16Bit, 172KSPS, Serial, 4.75V to 5.25V, 11.4V to 15.75V, SSOP
Stock Locations:
Availability:
2,374 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 12.54

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The DAC7731E is a 16-bit Digital-to-analog Converter (DAC) provides monotonic performance over the specified operating temperature range and offers a 10V internal reference. It is designed for automatic test equipment and industrial process control applications. The flexibility of the output configuration allows the DAC7731 to provide both unipolar and bipolar operation by pin strapping. The DAC7731 includes a high-speed output amplifier with a maximum settling time of 5µs to ±0.003% FSR for a 20V full-scale change and only consumes 100mW of power. The DAC7731 features a standard 3-wire, SPI-compatible serial interface with double buffering to allow asynchronous updates of the analog output as well as a serial data output line for daisy-chaining multiple DAC7731. User programmable reset control forces the DAC output to either min-scale or mid-scale, overriding both the input and DAC register values.
Low power - 150mW maximum
Settling time - 5µs to 0.03% FSR
Double-buffered data inputs
Green product and no Sb/Br

Show

DAC7731E Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	SSOP-24
Operating Voltage	12V ~ 15V
Number of Outputs	1 Output
Supply Current	4.00 mA
Number of Channels	1 Channel
Number of Positions	24 Position
Number of Bits	16 Bit
Power Dissipation	0.15 W
Sample Rate	172 µHz
Power Consumption	100 mW
Thermal Shutdown	No
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	150 mW
Number of DACs	1 DAC
Supply Voltage (Max)	5.25V, 15.75V
Supply Voltage (Min)	4.75V, 11.4V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/06/15
