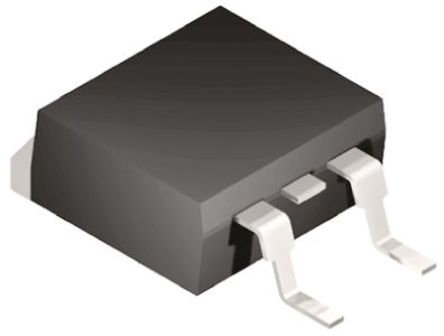

MBRB60H100CTT4G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC1909304
Category:
Schottky Diode
Package:
TO-263-3
Datasheet:
Datasheet 3D Model
Description:
ON SEMICONDUCTOR MBRB60H100CTT4G Schottky Rectifier, 100V, 30A, Common Cathode, TO-263, 3Pins, 800mV
Stock Locations:
Availability:
58 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 3.3

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MBRB60H100CTT4G is a Switch-mode Schottky Barrier Rectifier with UL94V-0 epoxy moulded case and all external surfaces corrosion-resistant and terminal leads are readily solderable finish. The enhanced power rectifier features low forward voltage, high surge capacity, low power loss and high efficiency.
1°C/W Junction-to-case maximum thermal resistance
70°C/W Junction-to-ambient maximum thermal resistance
ESD sensitive device, take proper precaution while handling the device.

Show

MBRB60H100CTT4G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	TO-263-3
Halogen Free Status	Halogen Free
Number of Positions	3 Position
Forward Voltage	840mV @30A
Forward Current	30 A
Max Forward Surge Current (Ifsm)	350 A
Maximum Forward Voltage (Max)	980 mV
Forward Current (Max)	60 A
Operating Temperature (Max)	175 ℃
Operating Temperature (Min)	-55 ℃
Junction Temperature	175℃ (Max)
	Show
Size-Length	10.29 mm
Size-Width	9.65 mm
Size-Height	4.83 mm
Operating Temperature	-65℃ ~ 175℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2016/06/20
ECCN Code	EAR99
