Description

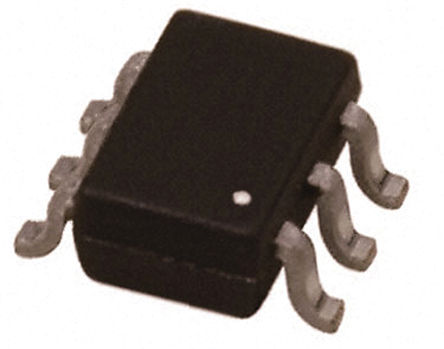

ON Semiconductor has the solution to your circuit"s high-voltage requirements with their PNP MBT35200MT1G general purpose bipolar junction transistor. This bipolar junction transistor"s maximum emitter base voltage is 5 V. Its maximum power dissipation is 1000 mW. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This bipolar junction transistor has a minimum operating temperature of -55 °C and a maximum of 150 °C. It has a maximum collector emitter voltage of 35 V and a maximum emitter base voltage of 5 V.

Show

MBT35200MT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	6 Pin
Case/Package	SOT-23-6
Frequency	100 MHz
Voltage Rating (DC)	-35.0 V
Current Rating	-2.00 A
Halogen Free Status	Halogen Free
Polarity	PNP, P-Channel
Power Dissipation	625 mW
Gain Bandwidth Product	100 MHz
Breakdown Voltage (Collector to Emitter)	35 V
Continuous Collector Current	2A
hFE Min	100 @1.5A, 1.5V
Input Power (Max)	625 mW
DC Current Gain (hFE)	100
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-55 ℃
Power Dissipation (Max)	1000 mW
	Show
Size-Length	3.1 mm
Size-Width	1.7 mm
Size-Height	1 mm
Material	Silicon
Operating Temperature	-55℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
