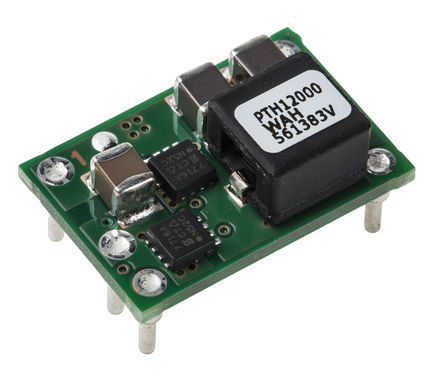

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PTH12000WAH is a 1-output 33W through hole-mount non-isolated Adjust Module using double-sided surface mount construction and synchronous rectification technology, these regulators deliver up to 6A of output current while occupying a PCB area of about half the size of a standard postage stamp. They are an ideal choice for applications where space, performance and cost are important design constraints. The series operates from an input voltage of 12V to provide step-down power conversion to a wide range of output voltages. W-suffix devices are adjustable from 1.2 to 5.5V and L-suffix devices are adjustable from 0.8 to 1.8V. The output voltage is set within the adjustment range using a single external resistor. Operating features include an ON/OFF inhibit, output voltage adjust (trim) and the ability to start up into an existing output voltage or pre-bias. A non-latching over-current trip provides protection against load faults.
Small size, high performance, wide-output
Pre-bias start-up
ON/OFF inhibit
Under-voltage lockout
Output over-current protection (non-latching, auto-reset)
12V Input voltage
230W/inch³ Power density
Efficiencies up to 92%

Show

PTH12000WAH Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	DIP-5
Frequency	350 kHz
Supply Voltage (DC)	12.0 V
Power Rating	33 W
Number of Outputs	1 Output
Input Voltage (DC)	10.8V ~ 13.2V
Output Voltage	1.2V ~ 5.5V
Output Current	6 A
Number of Regulated Outputs	1 Output
Switching Frequency	300kHz ~ 400kHz
Topology	Buck
Input Voltage (Max)	13.2 V
Input Voltage (Min)	10.8 V
Input Voltage (DC Max)	13.2 V
Input Voltage (DC Min)	10.8 v
Output Voltage (Max)	5.5 V
Output Voltage (Min)	1.2 V
Output Current (Max)	6 A
Input Power (Max)	33 W
Input Power (Max)	33 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	2 %
Supply Voltage	12 V
Supply Voltage (Max)	13.2 V
Supply Voltage (Min)	10.8 V
Input Voltage	12 V
	Show
Size-Length	18.92 mm
Size-Width	12.57 mm
Size-Height	8.5 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
