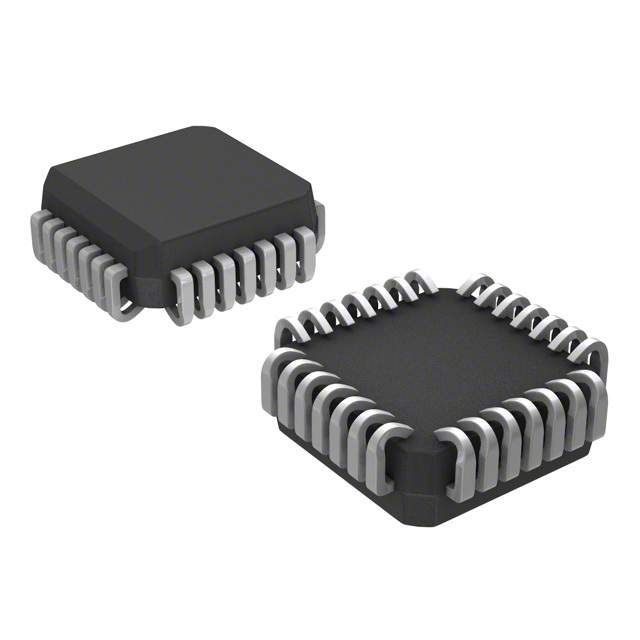

Image is for your reference only,please check specifications for details

Updated at 07/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC10E/100E167 contains six 2:1 multiplexers followed by D flip-flops with single-ended outputs. Input data are selected by the Select control, SEL. The selected data are transferred to the flip-flop outputs by a positive edge on CLK1 or CLK2 (or both). A HIGH on the Master Reset (MR) pin asynchronously forces all Q outputs LOW.The 100 Series contains temperature compensation.
Features
---
|
1000MHz Min. Operating Frequency
800ps Max. Clock to Output
Single-Ended Outputs
Asynchronous Master Resets
Dual Clocks
PECL Mode Operating Range: VCC = 4.2 V to 5.7 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = -4.2 V to -5.7 V
Internal Input Pulldown Resistors
ESD Protection: > 1 kV HBM, > 75 V MM
Meets or Exceeds JEDEC Spec EIA/JESD78 IC Latchup Test
Moisture Sensitivity Level 1
For Additional Information, see Application Note AND8003/D
Flammability Rating: UL-94 code V-0 @ 1/8", Oxygen Index 28 to 34
Transistor Count = 323 devices
Pb-Free Packages are Available
