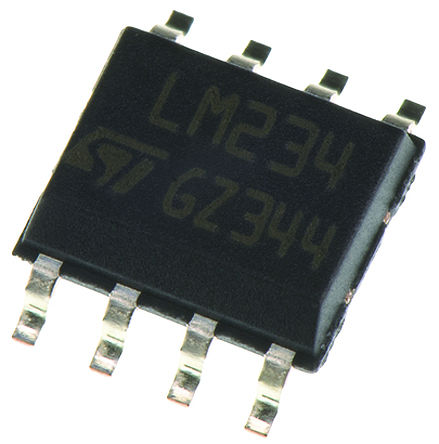

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- DESCRIPTION
- The MC1458 is a high performance monolithic dual operational amplifier intended for a wide range of analog applications :
- .Summing amplifier
- .Voltage follower
- .Integrator
- .Active filter
- .Function generator
- The high gain and wide range of operating voltages provide superior performance in integrator, summing amplifier, and general feed back applications.
- .LOW POWER CONSUMPTION
- .LARGE INPUT VOLTAGE RANGE
- .NO LATCH-UP
- .HIGH GAIN
- .SHORT-CIRCUIT PROTECTION
- .NO FREQUENCY COMPENSATION REQUIRED
MC1458ID Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 8 Pin |
| Case/Package | SOIC-8 |
| Output Current | 35 mA |
| Supply Current | 2.3 mA |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Power Dissipation | 300 mW |
| Common Mode Rejection Ratio | 70 dB |
| Slew Rate | 800 mV/μs |
| Gain Bandwidth Product | 1 MHz |
| Input Offset Voltage | 1 mV |
| Input Bias Current | 30 nA |
| Input Voltage (Max) | 22 V |
| Operating Temperature (Max) | 105 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Gain Bandwidth | 1 MHz |
| Power Dissipation (Max) | 300 mW |
| Minimum CMRR Range | 70 dB |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 4 mm |
| Size-Height | 1.65 mm |
| Operating Temperature | -40℃ ~ 105℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
