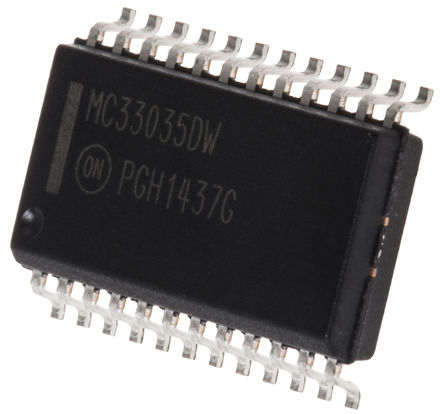

Image is for your reference only,please check specifications for details
- MC33035DWG - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC220696
-
Category:Motor Driver
-
Package:SOIC-24
-
Datasheet:Datasheet 3D Model
-
Description:Motor Driver/Controller, DC Brushless, 10V to 30V supply, 40V/50mA/6Outputs, SOIC-24
-
Stock Locations:
-
Availability:297 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.48
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MC33035DWG is a high performance second generation monolithic brushless DC Motor Controller, contains all of the active functions required to implement a full featured open loop, three or four phase motor control system. This device consists of a rotor position decoder for proper commutation sequencing, temperature compensated reference capable of supplying sensor power, frequency programmable sawtooth oscillator, three open collector top drivers and three high current totem pole bottom drivers ideally suited for driving power MOSFETs. Also included are protective features consisting of under-voltage lockout, cycle-by-cycle current limiting with a selectable time delayed latched shutdown mode, internal thermal shutdown and an unique fault output that can be interfaced into microprocessor controlled systems. Typical motor control functions include open loop speed, forward or reverse direction, run enable and dynamic braking.
- Under-voltage Lockout
- 6.25V Reference Capable of Supplying Sensor Power
- Fully Accessible Error Amplifier for Closed Loop Servo Applications
- High Current Drivers Can Control External 3-phase MOSFET Bridge
- Cycle-by-cycle Current Limiting
- Pinned-out Current Sense Reference
- Internal Thermal Shutdown
- Selectable 60/300° or 120/240° Sensor Phasing
- Can Efficiently Control Brush DC Motors with External MOSFET H-bridge
- Stresses exceeding Maximum Ratings may damage the device, extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
MC33035DWG Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 24 Pin |
| Case/Package | SOIC-24 |
| Supply Voltage (DC) | 30.0V (max) |
| Operating Voltage | 10V ~ 30V |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 6 Output |
| Output Voltage | 40 V |
| Output Current | 50 mA |
| Supply Current | 14 mA |
| Number of Channels | 3 Channel |
| Number of Positions | 24 Position |
| Power Dissipation | 650 mW |
| Rise Time | 107 ns |
| Fall Time | 26 ns |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 650 mW |
| Supply Voltage | 10V ~ 30V |
| Supply Voltage (Max) | 30 V |
| Supply Voltage (Min) | 10 V |
| Show | |
| Size-Length | 15.54 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.36 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
