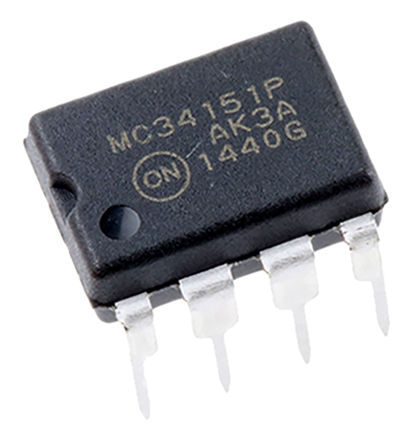

MC34151PG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC6683144
Category:
FET Driver
Package:
PDIP-8
Datasheet:
Datasheet 3D Model
Description:
MC34151PG, Dual MOSFET Power Driver 1.5A, 6.5 to 18V, Inverting, 8Pin PDIP
Stock Locations:
Availability:
283 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.15

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC34151PG is a dual inverting high speed dual MOSFET Driver specifically designed for applications that require low current digital circuitry to drive large capacitive loads with high slew rates. This device features low input current making them CMOS and LSTTL logic compatible, input hysteresis for fast output switching that is independent of input transition time and two high current totem pole outputs ideally suited for driving power MOSFETs. It also included an under-voltage lockout with hysteresis to prevent erratic system operation at low supply voltages.
CMOS/LSTTL compatible inputs with hysteresis
Under-voltage lockout with hysteresis
Low standby current
Efficient high frequency operation
Enhanced system performance with common switching regulator control ICs
Pin out equivalent to DS0026 and MMH0026

Show

MC34151PG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	8 Pin
Case/Package	PDIP-8
Supply Voltage (DC)	6.50V (min)
Rise/Fall Time	31ns, 32ns
Halogen Free Status	Halogen Free
Number of Outputs	2 Output
Output Voltage	11.2 V
Output Current	1.50 A
Number of Positions	8 Position
Power Dissipation	1 W
Rise Time	31 ns
Output Current (Max)	1.5 A
Fall Time	32 ns
Fall Time (Max)	32 ns
Fall Time (Max)	31 ns
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	0 ℃
Power Dissipation (Max)	1000 mW
Supply Voltage	6.5V ~ 18V
Supply Voltage (Max)	18 V
Supply Voltage (Min)	6.5 V
	Show
Size-Length	10.16 mm
Size-Width	6.6 mm
Size-Height	3.44 mm
Operating Temperature	0℃ ~ 150℃ (TJ)
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
