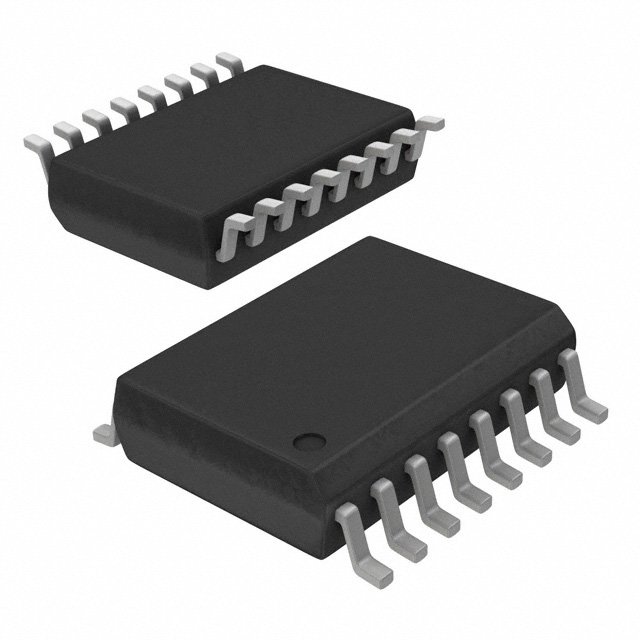

Image is for your reference only,please check specifications for details
- MC34163DW - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC111289270
-
Category:DC to DC Converter
-
Package:SOIC-16
-
Datasheet:Datasheet 3D Model
-
Description:Conv DC-DC 2.5V to 40V Non-Inv/Inv/Step Up/Step Down Single-Out 3A 16Pin SOIC W Rail
-
Stock Locations:
-
Availability:238 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.65
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MC34163 series are monolithic power switching regulators that contain the primary functions required for dc−to−dc converters. This series is specifically designed tobe incorporated in step−up,
- step−down, and voltage−inverting applications with a minimum number of external components.
- Features
- •Output Switch Current in Excess of 3.0 A
- •Operation from 2.5 V to 40 V Input
- •Low Standby Current
- •Precision 2% Reference
- •Controlled Duty Cycle Oscillator
- •Driver with Bootstrap Capability for Increased Efficiency
- •Cycle−by−Cycle Current Limiting
- •Internal Thermal Shutdown Protection
- •Low Voltage Indicator Output for Direct Microprocessor Interface
- •Heat Tab Power Package
MC34163DW Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 16 Pin |
| Case/Package | SOIC-16 |
| Number of Outputs | 1 Output |
| Switching Frequency | 50 kHz |
| Input Voltage (Max) | 40 V |
| Input Voltage (Min) | 2.5 V |
| Output Voltage (Min) | 1.25 V |
| Output Current (Max) | 3 A |
| Operating Temperature (Max) | 70 ℃ |
| Operating Temperature (Min) | 0 ℃ |
| Show | |
| Operating Temperature | 0℃ ~ 70℃ (TA) |
| Product Lifecycle Status | Unknown |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
