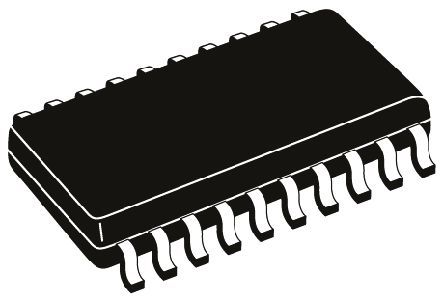

- MC74AC541DWR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC10884326
-
Category:Logic Control, Logic Gate IC
-
Package:SOIC-20
-
Datasheet:Datasheet 3D Model
-
Description:Buffer/Line Driver 8CH Non-Inverting 3-ST CMOS 20Pin SOIC W T/R
-
Stock Locations:
-
Availability:275 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- By driving the input to the transmission line this MC74AC541DWR2G buffer and line driver by ON Semiconductor will amplify any signal. With a 3-state output, this is power management at its best. This line driver has a minimum operating temperature of -40 °C and a maximum of 85 °C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has 8 channels per chip. This non-inverting device has a typical operating supply voltage of 5 V. Its minimum operating supply voltage of 2 V, while its maximum is 6 V.
MC74AC541DWR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | SOIC-20 |
| Supply Voltage (DC) | 5.00 V |
| Capacitance | 4.5 pF |
| Halogen Free Status | Halogen Free |
| Number of Outputs | 8 Output |
| Number of Channels | 8 Channel |
| Number of Positions | 20 Position |
| Number of Bits | 8 Bit |
| Power Dissipation | 500 mW |
| Quiescent Current | 8 µA |
| Number of Inputs | 8 Input |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2V ~ 6V |
| Supply Voltage (Max) | 6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 12.95 mm |
| Size-Width | 7.6 mm |
| Size-Height | 2.4 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| ECCN Code | EAR99 |
