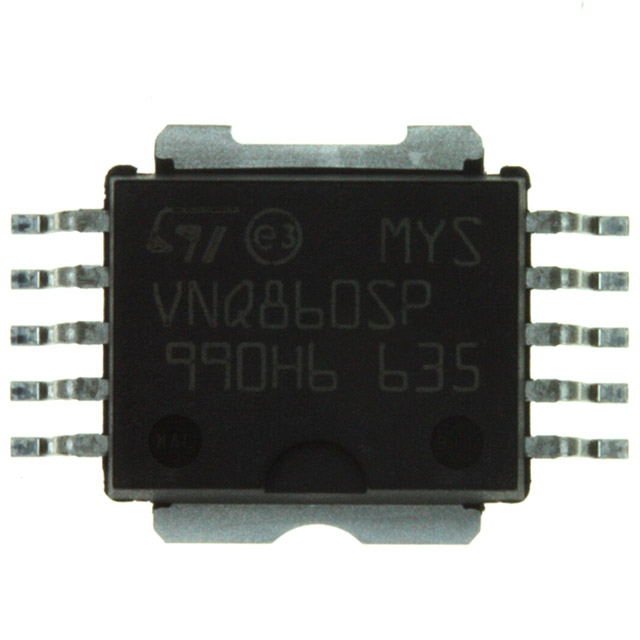

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

VNQ860SP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	PowerSO-10
Supply Voltage (DC)	36.0V (max)
Number of Outputs	4 Output
Supply Current	120 mA
Number of Channels	4 Channel
Drain to Source Resistance (on) (Rds)	540 mΩ
Output Current (Max)	250 mA
Supply Voltage	5.5V ~ 36V
	Show
Operating Temperature	-40℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
