- ADP5071AREZ - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC2033396
-
Category:DC to DC Converter
-
Package:TSSOP-20
-
Datasheet:Datasheet 3D Model
-
Description:ANALOG DEVICES ADP5071AREZ DC-DC Switching Regulator, Buck, 2 Output, Boost, up to 15V in, 39V/1A out, 2.4MHz, TSSOP-20
-
Stock Locations:
-
Availability:262 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 2.3
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description

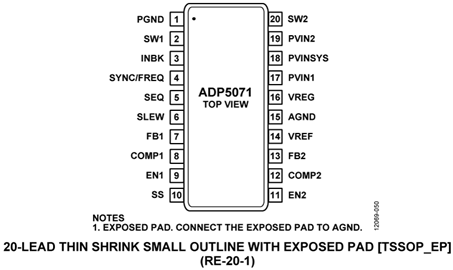

- The ADP5071AREZ is a high performance, dual DC to DC switching regulator with independent positive and negative outputs in 20 pin TSSOP package. The integrated main switch in both regulators enables generation of an adjustable positive output voltage up to +39V and negative output voltages down to -39V below input voltage. The ADP5071 operates at a pin selected 1.2MHz/2.4MHz switching frequency. It can synchronize with an external oscillator from 1MHz to 2.6MHz to ease noise filtering in sensitive applications. Both regulators implement programmable slew rate control circuitry for MOSFET driver stage to reduce EMI. The ADP5071 includes fixed internal or resistor programmable soft start timer to prevent inrush current at power-up. During shutdown, both regulators completely disconnect the loads from the input supply to provide true shutdown. This regulator provides overcurrent protection (OCP), overvoltage protection (OVP), thermal shutdown (TSD) and input undervoltage lockout (UVLO).
- Wide input voltage range from 2.85V to 15V
- Integrated 2A main switch for boost regulator and 1.2A main switch for inverting regulator
- Supported by the ADIsimPower tool set
- Boost regulator to generate VPOS output and inverting regulator to generate VNEG output
- Out of phase operation
- Individual precision enable and flexible start-up sequence
- Slew rate control for lower system noise
- Resistor programmable soft start timer
- Optional single ended primary inductor converter (SEPIC) for automatic step-up/step-down
- Operating junction temperature range from -40°C to 125°C
- ESD (electrostatic discharge) sensitive device. Proper ESD precautions are recommended to avoid performance degradation or loss of functionality.
ADP5071AREZ Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 20 Pin |
| Case/Package | TSSOP-20 |
| Number of Outputs | 2 Output |
| Output Voltage | 2.85V ~ 39V |
| Output Current | 1.2A, 2A |
| Number of Positions | 20 Position |
| Switching Frequency | 2.4 MHz |
| Input Voltage (Max) | 15 V |
| Input Voltage (Min) | 2.85 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage (Min) | 2.85 V |
| Input Voltage | 2.85V ~ 15V |
| Show | |
| Operating Temperature | -40℃ ~ 125℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
