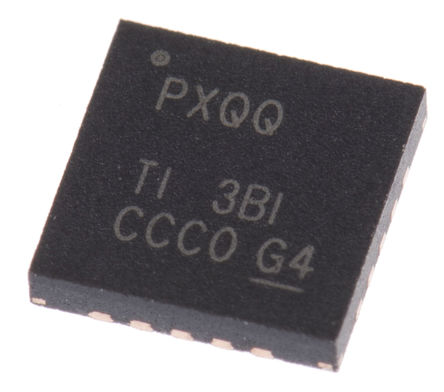

TPS7A3301RGWT - TI
Manufacturer:
TI
ManyChip's Part#:
MC725304
Category:
Voltage Regulator
RoHS:
Lead free / RoHS Compliant
Datasheet:
Datasheet 3D Model
Description:
LDO Voltage Regulator, Adjustable, -36V to -3V in, 325mV drop, -33V to -1.18V/1A out, VQFN-20
Stock Locations:
Availability:
436 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 6.34

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TPS7A3301RGWT is an Ultralow Noise Low-dropout Linear Regulator capable of sourcing a maximum load of 1A. The TPS7A33 series include a complementary metal oxide semiconductor (CMOS) logic-level-compatible enable pin (EN) to allow for user-customizable power management schemes. Other features available include built-in current limit and thermal shutdown features to protect the device and system during fault conditions. This is designed using bipolar technology primarily for high-accuracy, high-precision instrumentation applications, where clean voltage rails are critical to maximize system performance. This feature makes it ideal to power operational amplifiers, ADCs, DACs and other high-performance analogue circuitry. In addition, linear regulator is suitable for post DC-DC converter regulation. By filtering out the output voltage ripple inherent to DC-DC switching conversion, maximum system performance is ensured in sensitive instrumentation, medical, audio and RF applications.
16µVRMS Noise (10Hz to 100kHz)
72dB Power-supply ripple rejection (10kHz)
-1.18 to -33V Adjustable output
Stable with ceramic capacitors >=10µF
Built-in current-limit and thermal shutdown protection
Green product and no Sb/Br
This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.

Show

TPS7A3301RGWT Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	20 Pin
Case/Package	VQFN-20
Number of Outputs	1 Output
Output Voltage	-33.0 V (min)
Output Current	1 A
Supply Current	100µA ~ 950µA
Number of Positions	20 Position
Quiescent Current	0.21 mA
Output Capacitor Type	Ceramic
voltage rating	325 mV
Number of Regulated Outputs	1 Output
Input Voltage (Max)	36 V
Input Voltage (Min)	36 V
Output Current (Max)	1 A
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-40 ℃
Accuracy	±1.5 %
	Show
Size-Length	5.15 mm
Size-Width	5.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
