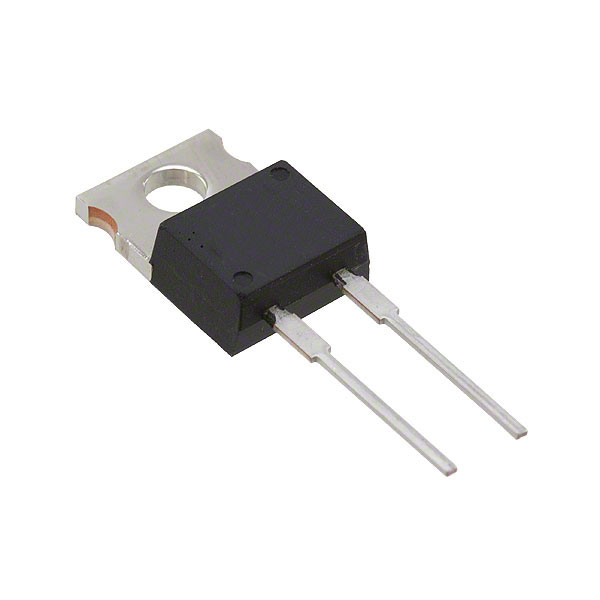

Image is for your reference only,please check specifications for details

MPR20C22RJ - TE Connectivity
Manufacturer:
TE Connectivity
ManyChip's Part#:
MC103791897
Category:
Through-Hole Resistor
Package:
TO-220-2
Datasheet:
Datasheet 3D Model
Description:
CGS - TE CONNECTIVITY MPR20C22RJ Through Hole Metal Film Resistor, MPR Series, 22Ω, 20W, - 5%, 500V, TO-220
Stock Locations:
Availability:
1,812 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.03

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

22 Ohms ±5% 20W Through Hole Resistor TO-220-2 Flame Proof, Non-Inductive, Safety Thick Film

Show

MPR20C22RJ Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	2 Pin
Case/Package	TO-220-2
Voltage Rating (DC)	500 V
Capacitance Tolerance	±5 %
Power Rating	20 W
Resistance	22 Ω
Resistance Tolerance	±5 %
Operating Temperature (Max)	155 ℃
Operating Temperature (Min)	-55 ℃
Voltage Rating	500 V
	Show
Size-Length	10.60 mm
Size-Width	4.50 mm
Operating Temperature	-55℃ ~ 155℃
Temperature Coefficient	±50 ppm/℃
Product Lifecycle Status	Active
Packaging	Bulk
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
ELV Compliant	Compliant
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
