Description

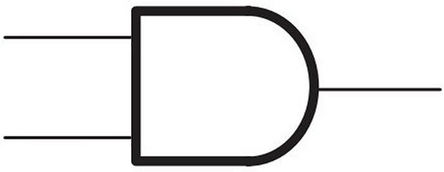

The MC74HC1G08DFT2G is a high speed CMOS single 2-input AND Gate fabricated with silicon gate CMOS technology. The internal circuit is composed of multiple stages, including a buffer output which provides high noise immunity and stable output. The MC74HC1G08 output drive current is 1/2 compared to MC74HC series.
7ns Propagation delay (tPD)
1µA Low power dissipation (ICC)
High noise immunity
Balanced propagation delays
Symmetrical output impedance
Chip complexity - 44 FETs

Show

MC74HC1G08DFT2G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	5 Pin
Case/Package	SC-70-5
Supply Voltage (DC)	5.00 V
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Number of Circuits	1 Circuit
Number of Positions	5 Position
Power Dissipation	190 mW
Number of Gates	1 Gate
Number of Inputs	2 Input
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	-55 ℃
Supply Voltage	2V ~ 6V
Supply Voltage (Max)	6 V
Supply Voltage (Min)	2 V
	Show
Size-Length	2.2 mm
Size-Width	1.35 mm
Size-Height	1 mm
Operating Temperature	-55℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
