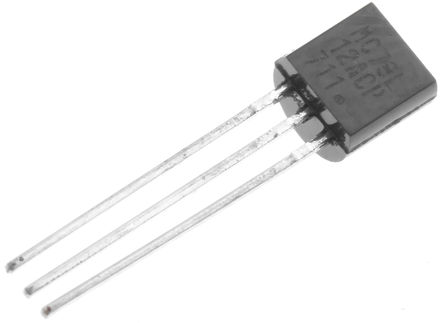

Image is for your reference only,please check specifications for details

MC78L12ACPG - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC2331096
Category:
Voltage Regulator
Package:
TO-92-3
Datasheet:
Datasheet 3D Model
Description:
12V, 100mA Positive Linear Voltage Regulator Vout: 12V; TJ = 0°C to +125℃, TO-92 (TO-226) 5.33mm Body Height, 2000-BLKBG
Stock Locations:
Availability:
72 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.84

Updated at 02/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC78L12ACPG is an inexpensive easy-to-use Positive Voltage Regulator with 12V output voltage. It is suitable for a multitude of applications that require a regulated supply of up to 100mA. Like its higher powered, this regulator features internal current limiting and thermal shutdown making it remarkably rugged. This device offers a substantial performance advantage over the traditional Zener diode-resistor combination, as output impedance and quiescent current are substantially reduced.
No external components required

Show

MC78L12ACPG Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-92-3
Supply Voltage (DC)	35.0V (max)
Operating Voltage	14.5V ~ 27V
Current Rating	100 mA
Halogen Free Status	Halogen Free
Number of Outputs	1 Output
Input Voltage (DC)	27.0V (max)
Output Voltage	12 V
Output Current	100 mA
Number of Positions	3 Position
Polarity	P-Channel
Quiescent Current	4.2 mA
voltage rating	1.7V @40mA
Input Bias Current	4.2 mA
Input Voltage (Max)	35 V
Input Voltage (Min)	19 V
Output Voltage (Min)	12 V
Output Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Supply Voltage	35 V
Input Voltage	35 V
	Show
Size-Length	5.2 mm
Size-Width	4.19 mm
Size-Height	5.33 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
