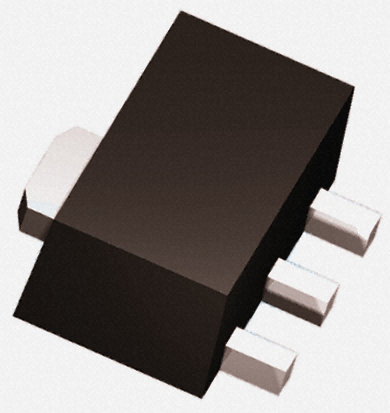

Image is for your reference only,please check specifications for details

MC78LC33HT1G - ON Semiconductor
Manufacturer:
ON Semiconductor
ManyChip's Part#:
MC9404333
Category:
Voltage Regulator
Package:
SOT-89-3
Datasheet:
Datasheet 3D Model
Description:
MC78LC33HT1G, Single Linear Voltage Regulator, 50mA 3.3V, +/-2.5%, 3Pin SOT-89
Stock Locations:
Availability:
273 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.63

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Micropower Voltage Regulator
The MC78LC00 series of fixed output low dropout linear regulators are designed for handheld communication equipment and portable battery powered applications which require low quiescent current. The MC78LC00 series features an ultra−low quiescent current of 1.1 A. Each device contains a voltage reference unit, an error amplifier, a PMOS power transistor, and resistors for setting output voltage.
Features
•Low Quiescent Current of 1.1 A Typical
•Excellent Line and Load Regulation
•Maximum Operating Voltage of 12 V
•Low Output Voltage Option
•High Accuracy Output Voltage of 2.5%
•Industrial Temperature Range of −40°C to 85°C
•Two Surface Mount Packages (SOT−89, 3 Pin, or SOT−23, 5 Pin)
•These are Pb−Free Devices
Typical Applications
•Battery Powered Instruments
•Hand−Held Instruments
•Camcorders and Cameras

Show

MC78LC33HT1G Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	3 Pin
Case/Package	SOT-89-3
Current Rating	80.0 mA
Power Rating	140 mW
Number of Outputs	1 Output
Input Voltage (DC)	12.0V (max)
Output Voltage	3.3 V
Output Current	100 mA
Supply Current	3.3 µA
Number of Positions	3 Position
Polarity	P-Channel
Power Dissipation	900 mW
Quiescent Current	0.0011 mA
voltage rating	0.035V @1mA
Input Voltage (Max)	12 V
Input Voltage (Min)	4.3 V
Output Voltage (Min)	3.3 V
Output Current (Max)	50 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Power Dissipation (Max)	300 mW
Accuracy	±2.5 %
Supply Voltage	12 V
Input Voltage	12 V
	Show
Size-Length	4.6 mm
Size-Width	2.6 mm
Size-Height	2.6 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
