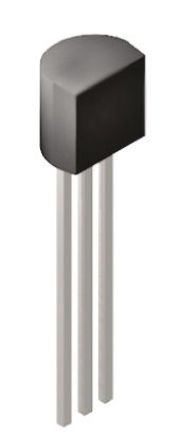

Image is for your reference only,please check specifications for details

MC79L12ACLP - TI
Manufacturer:
TI
ManyChip's Part#:
MC27383900
Category:
Voltage Regulator
Package:
TO-226-3
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS MC79L12ACLP Linear Voltage Regulator, 7912, Fixed, -27V To -14.5V In, -12V And 0.1A Out, TO-92-3
Stock Locations:
Availability:
2,066 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.29

Updated at 04/12/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MC79L12ACLP is a fixed Negative-Voltage Regulator designed for a wide range of applications. This includes on-card regulation for elimination of noise and distribution problems associated with single-point regulation. In addition, it can be used to control series pass elements to make high-current voltage-regulator circuits. This regulator can deliver up to 100mA of output current. The internal current-limiting and thermal-shutdown features essentially make the regulator immune to overload. When used as a replacement for a Zener-diode and resistor combination, this device can provide an effective improvement in output impedance of two orders of magnitude with lower bias current.
No external components required
Internal thermal-overload protection
Internal short-circuit current limiting

Show

MC79L12ACLP Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	3 Pin
Case/Package	TO-226-3
Number of Outputs	1 Output
Output Current	100 mA
Number of Channels	1 Channel
Number of Positions	3 Position
Quiescent Current	6.50 mA
Output Capacitor Type	Capacitor Free
voltage rating	1.7V @40mA
Number of Regulated Outputs	1 Output
Output Current (Max)	100 mA
Operating Temperature (Max)	125 ℃
Operating Temperature (Min)	0 ℃
Accuracy	±5 %
	Show
Size-Length	4.83 mm
Size-Width	3.43 mm
Size-Height	3.68 mm
Operating Temperature	0℃ ~ 125℃
Product Lifecycle Status	Active
Packaging	Each
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
