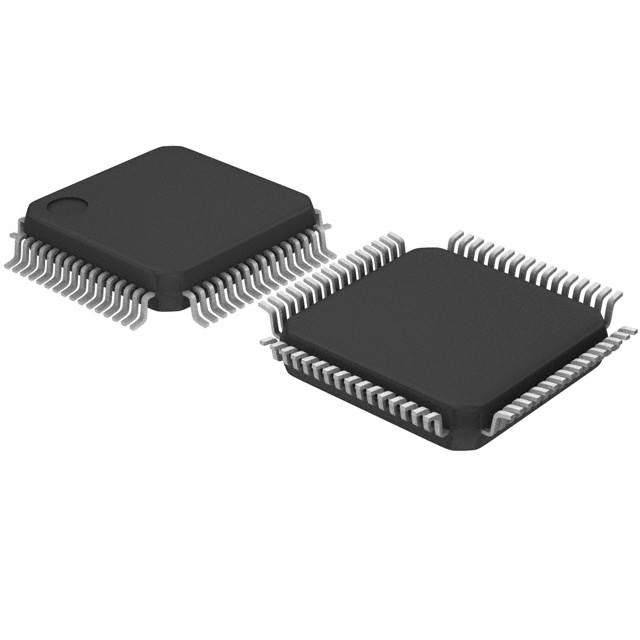

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

MC9S08GB60ACFUE Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	64 Pin
Case/Package	LQFP-64
Supply Voltage (DC)	3.30 V, 3.60 V (max)
Halogen Free Status	Halogen Free
Clock Speed	20.0 MHz, 40.0 MHz (max)
RAM Memory Size	4K x 8
Number of Bits	8 Bit
FLASH Memory Size	60 KB
Number of I/O Pins	56 IO
Access Time	20.0 µs
Core Architecture	HCS08
Memory Size	60000 B
Supply Voltage (Max)	3.6 V
Supply Voltage (Min)	1.8V, 2.08V
	Show
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Not Recommended for New Designs
Packaging	Tray
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
