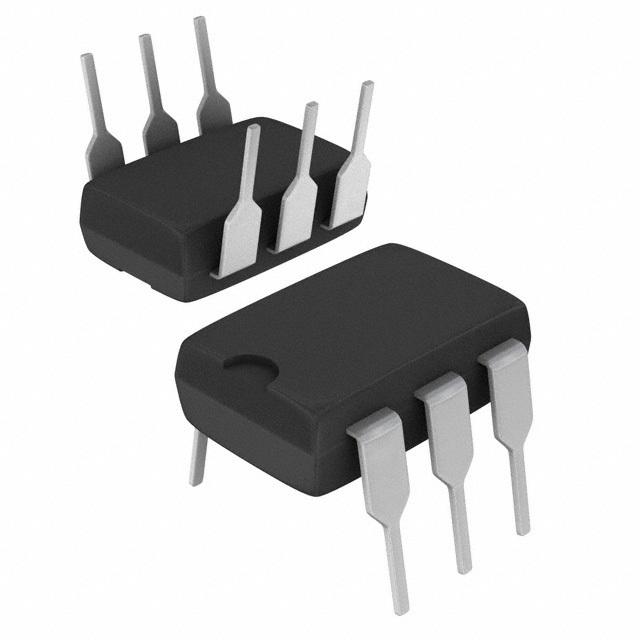

Image is for your reference only,please check specifications for details
- MCT5211 - Vishay Semiconductor
-
Manufacturer:Vishay Semiconductor
-
ManyChip's Part#:MC134807266
-
Category:Optocoupler, Optoisolator
-
Package:DIP-6
-
Datasheet:Datasheet 3D Model
-
Description:VISHAY MCT5211 Optocoupler, Transistor Output, 1Channel, DIP, 6Pins, 40mA, 5.3kV, 100%
-
Stock Locations:
-
Availability:1,981 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.62
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
MCT5211 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 6 Pin |
| Case/Package | DIP-6 |
| Voltage Rating (DC) | 1.20 V |
| Output Voltage | 30.0 V |
| Number of Channels | 1 Channel |
| Number of Positions | 6 Position |
| Forward Voltage | 1.2 V |
| Input Current | 5.00 mA |
| Power Dissipation | 260 mW |
| Isolation Voltage | 5.3 kV |
| Forward Current | 40 mA |
| Output Voltage (Max) | 30 V |
| Input Current (Min) | 40 mA |
| Maximum Forward Voltage (Max) | 1.5 V |
| Forward Current (Max) | 40 mA |
| Operating Temperature (Max) | 100 ℃ |
| Operating Temperature (Min) | -55 ℃ |
| Power Dissipation (Max) | 260 mW |
| Show | |
| Size-Height | 3.81 mm |
| Operating Temperature | -55℃ ~ 100℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Each |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
