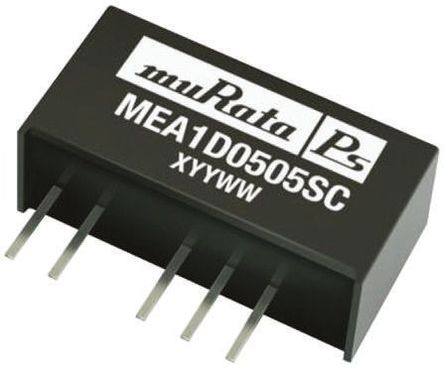

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Provide the ability to switch between voltages by using this step down MEA1D4805SC DC to DC converter and switching regulator module. It has a voltage of 5|-5 V. This part has a minimum operating temperature of -40 °C and a maximum of 85 °C. This device comes in tube packaging.

Show

MEA1D4805SC Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	5 Pin
Case/Package	SIP-7
Supply Voltage (DC)	48.0 V
Power Rating	1 W
Number of Outputs	2 Output
Input Voltage (DC)	43.2V ~ 52.8V
Output Voltage	±5 V
Output Current	100 mA
Output Power	1 W
Isolation Voltage	1 kV
Input Voltage (Max)	52.8 V
Input Voltage (Min)	43.2 V
Input Voltage (DC Max)	52.8 V
Input Voltage (DC Min)	43.2 v
Output Current (Max)	100mA, 100mA
Input Power (Max)	1 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	48 V
Input Voltage	43.2V ~ 52.8V
	Show
Size-Length	19.65 mm
Size-Width	6.15 mm
Size-Height	10.15 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/12/17
