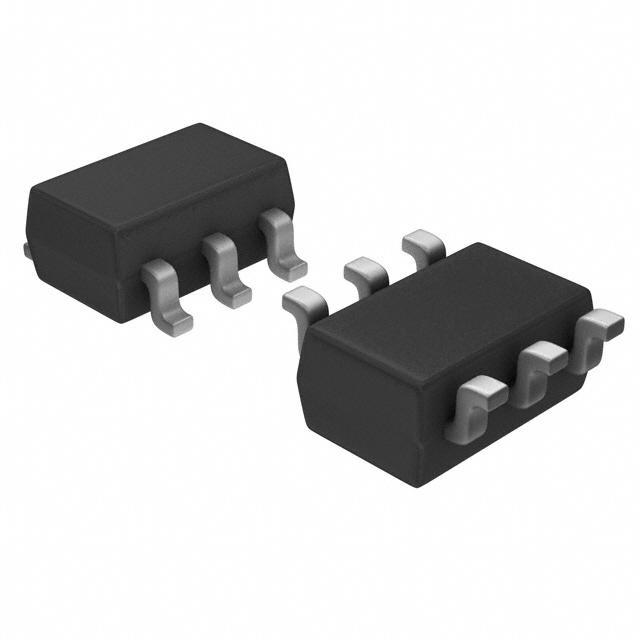

Image is for your reference only,please check specifications for details
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- General Description
- MIC20XX family of switches are current limiting, high-side power switches, designed for general purpose power distribution and control in digital televisions (DTV), printers, set top boxes (STB), PCs, PDAs, and other
- peripheral devices.
- Features
- • 70mΩ typical on-resistance @ 5V
- • 170mΩ typical on-resistance @ 5V (MIC2005A)
- • Enable active high or active low
- • 2.5V – 5.5V operating range
- • Pre-set current limit values of 0.5A, 0.8A, and 1.2A
- • User adjustable current limit from 0.2A to 2.1A
- • Under voltage lock-out (UVLO)
- • Variable UVLO allows adjustable UVLO thresholds
- • Automatic load discharge for capacitive loads
- • Soft start prevents large current inrush
- • Adjustable slew rate allows custom slew rates
- • Automatic-on output after fault
- • Thermal Protection
- Applications
- • Digital televisions (DTV)
- • Set top boxes
- • PDAs
- • Printers
- • USB / IEEE 1394 power distribution
- • Desktop and laptop PCs
- • Game consoles
- • Docking stations
MIC2019YM6 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | SOT-23-6 |
| Supply Voltage (DC) | 5.00 V |
| Number of Outputs | 1 Output |
| Output Voltage | ≤6.00 V |
| Input Voltage | 2.5V ~ 5.5V |
| Show | |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Unknown |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
