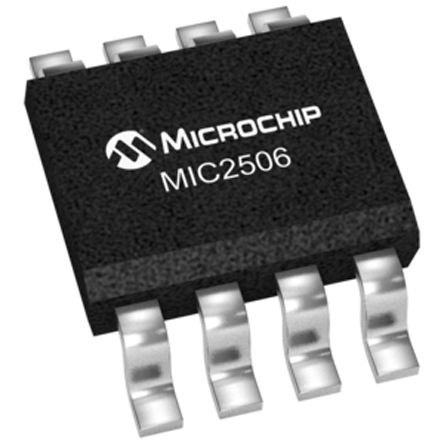

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Show

MIC2506YM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Number of Outputs	2 Output
Input Voltage (DC)	7.50 V
Number of Positions	8 Position
Rise Time	2000 µs
Input Voltage (Max)	7.5 V
Input Voltage (Min)	2.7 V
Output Current (Max)	1 A
Fall Time	0.7 µs
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Input Voltage	7.5 V
	Show
Size-Length	4.93 mm
Size-Width	3.94 mm
Size-Height	1.48 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
