MIC5020YM - Microchip
Manufacturer:
Microchip
ManyChip's Part#:
MC25079689
Category:
FET Driver
Package:
SOIC-8
Datasheet:
Datasheet 3D Model
Description:

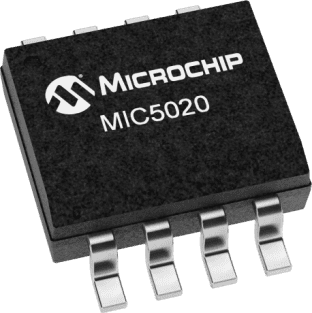

Microchip MIC5020YM, MOSFET Power Driver, 11 → 50V, Non-Inverting, 8Pin SOIC
Stock Locations:
Availability:
264 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 2.31

Updated at 23/07/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The MIC5020YM is a low-side MOSFET Driver designed to operate at frequencies greater than 100kHz and is an ideal choice for high-speed applications and using IGBTs. The MIC5020 can also operate as a circuit breaker with or without automatic retry. Its maximum supply voltage lends itself to control applications using up to 50V. It can control MOSFETs that switch voltages greater than 50V. A rising or falling edge on the input results in a current source or sink pulse on the gate output. This output current pulse can turn on or off a 2000pF MOSFET in approximately 175ns. The MIC5020 then supplies a limited current, if necessary to maintain the output state. An overcurrent comparator with a trip voltage of 50mV makes the MIC5020 ideal for use with a current sensing MOSFET. An external low value resistor may be used instead of a sensing MOSFET for more precise overcurrent control. A duty cycle from 20% to about 75% is possible with an optional pull-up resistor from CT to VDD.
Overcurrent limit
Fault output indication
Gate to source protection
Compatible with current-sensing MOSFETs
175ns Rise/fall time driving 2000pF

Show

MIC5020YM Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	8 Pin
Case/Package	SOIC-8
Frequency	0.15 MHz
Rise/Fall Time	700ns, 500ns
Number of Outputs	1 Output
Output Voltage	15.0 V
Number of Positions	8 Position
Rise Time	700 ns
Fall Time	500 ns
Fall Time (Max)	1500 ns
Fall Time (Max)	1500 ns
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	11V ~ 50V
Supply Voltage (Max)	50 V
Supply Voltage (Min)	11 V
	Show
Size-Length	4.93 mm
Size-Width	3.94 mm
Size-Height	1.48 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
ECCN Code	EAR99
