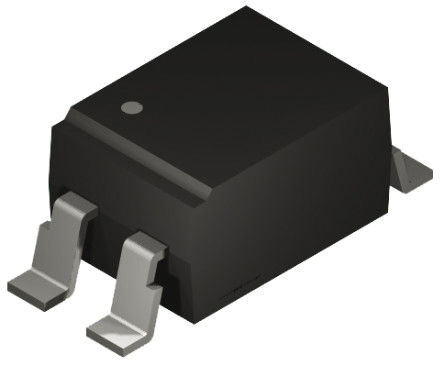

PVX6012PBF - Infineon
Manufacturer:
Infineon
ManyChip's Part#:
MC21026246
Category:
Solid State Relay
Package:
DIP-14
Datasheet:
Datasheet 3D Model
Description:
Relay; SSR; Power; SP-NO; Cur-Rtg 1A; Vol-Rtg 0-280/0-400AC/DC; PCB Mnt; Through Hole
Stock Locations:
Availability:
284 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 5.31

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The PVX6012PBF is an IGBT Photovoltaic Relay with SPST-NO contact and through hole terminals. This PVX6012-series relay features high load current capacity and low off-state leakage current. It utilizes an IGBT output switch, driven by an integrated circuit photovoltaic generator of novel construction. The output switch is controlled by radiation from a GaAlAs light emitting diode (LED) which is optically isolated from the photovoltaic generator. The PVX6012 is ideally suited for switching medium power loads.
Bounce-free operation
Solid state reliability
High operating speed
Low and stable on-state voltage drop
7ms Turn-on and 1ms Turn-off maximum time
-40 to 85°C Ambient operating temperature range

Show

PVX6012PBF Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Number of Pins	4 Pin
Case/Package	DIP-14
Current Rating	1 A
Capacitance	1 pF
Output Voltage	400 V
Contacts Type	SPST-NO
Number of Channels	1 Channel
Load Current	1 A
Number of Positions	4 Position
Input Current	25 mA
Rise Time	7 ms
Isolation Voltage	3.75 kV
Forward Current	25 mA
Output Voltage (Max)	600 V
Input Current (Min)	25 mA
Fall Time	1 ms
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	280 VAC
Input Voltage	1.2 VDC
	Show
Product Lifecycle Status	Active
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2015/12/17
