MINIMSDF000F - Amphenol
Manufacturer:
Amphenol
ManyChip's Part#:
MC20267689
Category:
Automotive, Automotive Connector
Package:
-
Datasheet:
Datasheet 3D Model
Description:

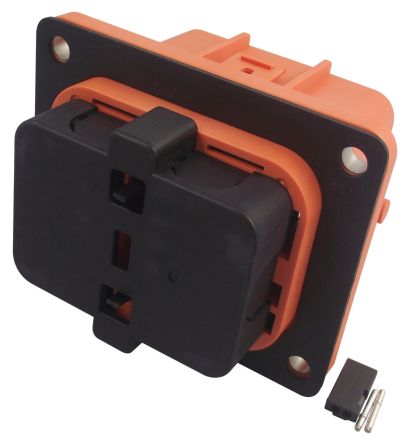

INDUSTRIAL@AMPHENOL MINIMSDF000F Power Entry Connector, Mini MSD Series, Receptacle, 1.5kV, 170A, Panel Mount
Stock Locations:
Availability:
254 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 18.78

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

MINIMSDF000F Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Panel
Case/Package	-
Gender	Female
Voltage Rating (DC)	1.50 kV
Operating Voltage	1500 VDC
Current Rating	170 A
Operating Temperature (Max)	70 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating	1.5 kV
	Show
Size-Width	98 mm
Size-Height	75 mm
Color	Orange
Operating Temperature	-40℃ ~ 125℃
RoHS	RoHS Compliant
REACH SVHC Compliance Edition	2015/12/17
