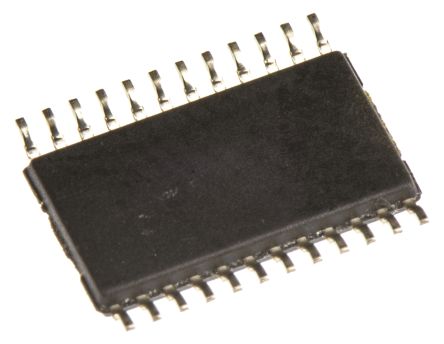

Image is for your reference only,please check specifications for details

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This 4 port repeater is designed for high speed interconnects utilizing Low Voltage Differential Signaling (LVDS) technology. The FIN1104 accepts and outputs LVDS levels with a typical differential output swing of 330 mV which provides low EMI at ultra low power dissipation even at high frequencies. The FIN1104 provides a V reference for AC coupling on the inputs. In addition the FIN1104 can directly accept LVPECL, HSTL, and SSTL-2 for translation to LVDS.
Features
---
|
Greater than 800 Mbps data rate
3.3V power supply operation
3.5 ps maximum random jitter and 135 ps maximum deterministic jitter
Wide rail-to-rail common mode range
LVDS receiver inputs accept LVPECL, HSTL, and SSTL-2 directly
Ultra low power consumption
20 ps typical channel-to-channel skew
Power off protection
>7.5 kV HBM ESD Protection
Meets or exceeds the TIA/EIA-644-A LVDS standard
Available in space saving 24-Lead TSSOP package
Open circuit fail safe protection
VBB >reference output
