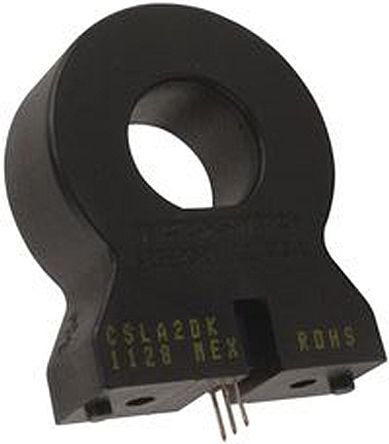

Image is for your reference only,please check specifications for details
- CSLA2DK - Honeywell
-
Manufacturer:Honeywell
-
ManyChip's Part#:MC10396796
-
Category:Current Sensor
-
Package:Module, Single Pass Through
-
Datasheet:Datasheet 3D Model
-
Description:HONEYWELL CSLA2DK Current Sensor, CSLA Series, Linear, -400A to 400A, Sink, Source Output, 6VDC to 12VDC
-
Stock Locations:
-
Availability:283 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 48.42
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Because it does not have a direct electrical connection to the current being monitored, this CSLA2DK current sensor from Honeywell allows for galvanic isolation to the measurement circuit. This device"s minimum operating supply voltage of 6 V, while its maximum is 12 V. This part has a temperature range of -25 °C to 85 °C.
CSLA2DK Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | Module, Single Pass Through |
| Supply Voltage (DC) | 5.40V (min) |
| Current Rating | 20 mA |
| Output Current | 1 mA |
| Supply Current | 13 mA |
| Number of Channels | 1 Channel |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Supply Voltage | 6V ~ 12V |
| Show | |
| Size-Width | 35.6 mm |
| Size-Height | 47.5 mm |
| Operating Temperature | -25℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 9030330040 |
| ECCN Code | EAR99 |
