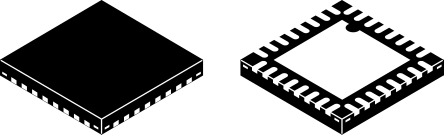

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The TLV320AIC3204IRHBT is a Very Low-power Stereo Audio Codec with PowerTune technology. This flexible, low-voltage stereo audio codec features programmable inputs and outputs, PowerTune capabilities, fixed predefined and parameterizable signal-processing blocks, integrated PLL, integrated LDOs and flexible digital interfaces. Combined with the advanced PowerTune technology, the device covers operations from 8kHz mono voice playback to audio stereo 192kHz DAC playback, making it ideal for portable battery-powered audio and telephony applications. The integrated PowerTune technology allows the device to be tuned to an optimum power-performance trade-off. Mobile applications frequently have multiple use cases requiring very low power operation while being used in a mobile environment.
- Stereo audio DAC with 100dB SNR
- 4.1mW Stereo 48kSPS playback
- Stereo audio ADC with 93dB SNR
- 6.1mW Stereo 48kSPS ADC record
- PowerTune™
- Extensive signal processing options
- Six single-ended or 3 fully-differential analogue inputs
- Stereo analogue and digital microphone inputs
- Stereo headphone outputs
- Very low-noise PGA
- Low power analogue bypass mode
- Programmable microphone bias
- Programmable PLL
- Integrated LDO
- Green product and no Sb/Br
- This device has limited built-in ESD protection, leads should be shorted together or the device placed in conductive foam during storage or handling to prevent electrostatic damage to the MOS gates.
TLV320AIC3204IRHBT Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 32 Pin |
| Case/Package | VQFN-32 |
| Number of Positions | 32 Position |
| Sample Rate | 192 KSPS |
| Power Consumption | 4.10 mW |
| Number of ADCs | 2 ADC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Number of Input Channels | 6 Channel |
| Number of Output Channels | 4 Channel |
| Number of DACs | 2 DAC |
| Supply Voltage | 1.1V ~ 3.6V |
| Show | |
| Size-Length | 5 mm |
| Size-Width | 5 mm |
| Size-Height | 0.9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
