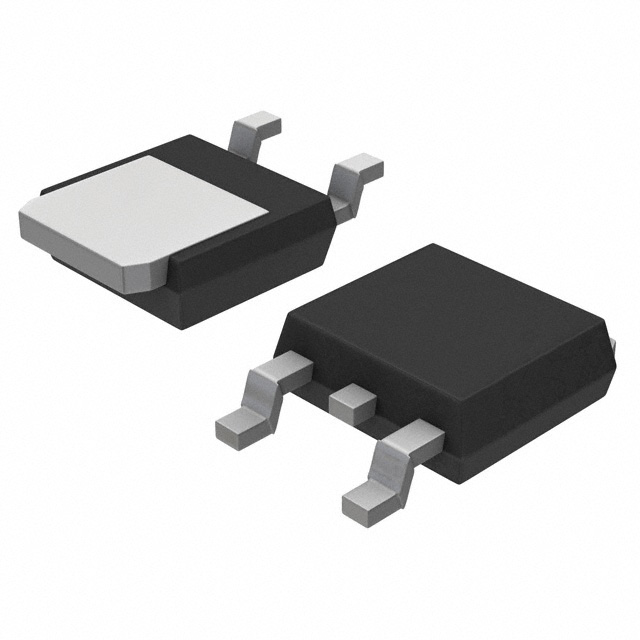

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

SILICON POWER TRANSISTORS 5 AMPERES 25 VOLTS, 12.5 WATTS
MJD200 (NPN)
MJD210 (PNP)
NPN/PNP Silicon DPAK For Surface Mount Applications
Designed for low voltage, low−power, high−gain audio amplifier applications.
Features
•Collector−Emitter Sustaining Voltage − VCEO(sus)= 25 Vdc (Min) @ IC= 10 mAdc
•High DC Current Gain − hFE = 70 (Min) @ IC= 500 mAdc
= 45 (Min) @ IC= 2 Adc
= 10 (Min) @ IC= 5 Adc
•Lead Formed for Surface Mount Applications in Plastic Sleeves
(No Suffix)
•Low Collector−Emitter Saturation Voltage −VCE(sat)= 0.3 Vdc (Max) @ IC= 500 mAdc
= 0.75 Vdc (Max) @ IC= 2.0 Adc
•High Current−Gain − Bandwidth Product −fT= 65 MHz (Min) @ IC= 100 mAdc
•Annular Construction for Low Leakage −ICBO= 100 nAdc @ Rated VCB
•Epoxy Meets UL 94 V−0 @ 0.125 in
•ESD Ratings: Human Body Model, 3B 8000 V Machine Model, C 400 V
•Pb−Free Packages are Available

Show

MJD210 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package	TO-252-3
Voltage Rating (DC)	-25.0 V
Current Rating	-5.00 A
Polarity	PNP
Power Dissipation	12.5 W
Breakdown Voltage (Collector to Emitter)	25 V
Continuous Collector Current	5A
hFE Min	45 @2A, 1V
hFE Max	180
Input Power (Max)	1.4 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	-65 ℃
	Show
Size-Length	6.73 mm
Size-Width	6.22 mm
Size-Height	2.38 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	2500
RoHS	Non-Compliant
Lead-Free Status	Contains Lead
