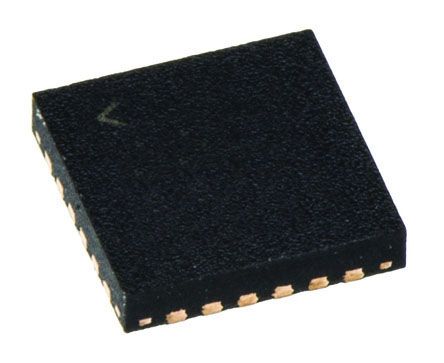

Image is for your reference only,please check specifications for details

TAS2505IRGET - TI
Manufacturer:
TI
ManyChip's Part#:
MC3408891
Category:
Audio Amplifier IC
Package:
VQFN-24
Datasheet:
Datasheet 3D Model
Description:
TEXAS INSTRUMENTS TAS2505IRGET Audio Power Amplifier, D, 1Channel, 2W, 1.5V to 2V, VQFN, 24Pins
Stock Locations:
Availability:
9 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.42

Updated at 01/11/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

The TAS2505 device is a low power digital input speaker amp with support for 24-bit digital I2S data mono playback.
In addition to driving a speaker amp up to 4-Ω, the device also features a mono headphone driver and a programmable digital-signal processing block. The digital audio data format is programmable to work with popular audio standard protocols (I2S, left/right-justified) in master, slave, DSP and TDM modes. The programmable digital-signal processing block can support Bass boost, treble, or EQ functions. An on-chip PLL provides the high-speed clock needed by the digital signal-processing block. The volume level can be controlled by register control. The audio functions are controlled using the I2C™ serial bus or SPI bus. The device includes an on-board LDO that runs off the speaker power supply to handle all internal device analog and digital power needs. The included POR as power-on-reset circuit reliably resets the device into its default state so no external reset is required at normal usage; however, the device does have a reset pin for more complex system initialization needs. The device also includes two analog inputs for mixing and muxing in both speaker and headphone analog paths.

Show

TAS2505IRGET Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Number of Pins	24 Pin
Case/Package	VQFN-24
Number of Circuits	3 Circuit
Number of Channels	1 Channel
Number of Positions	24 Position
Output Power	2 W
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Supply Voltage	1.5V ~ 1.95V
Supply Voltage (Max)	1.95 V
Supply Voltage (Min)	1.5 V
	Show
Size-Length	4.15 mm
Size-Width	4.15 mm
Size-Height	0.95 mm
Operating Temperature	-40℃ ~ 85℃ (TA)
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance	No SVHC
REACH SVHC Compliance Edition	2015/06/15
ECCN Code	EAR99
