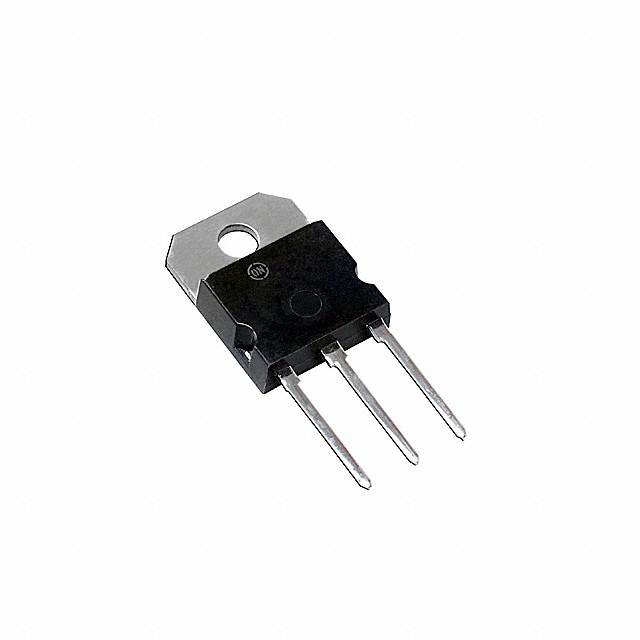

Image is for your reference only,please check specifications for details

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

Complementary Darlington Silicon Power Transistors
These devices are designed for use as general purpose amplifiers, low frequency switching and motor control applications.
Features
• High DC Current Gain @ 10 Adc — hFE = 400 Min (All Types)
• Collector−Emitter Sustaining Voltage
VCEO(sus) = 150 Vdc (Min) — MJH11018, 17
= 200 Vdc (Min) — MJH11020, 19
= 250 Vdc (Min) — MJH11022, 21
• Low Collector−Emitter Saturation Voltage
VCE(sat) = 1.2 V (Typ) @ IC = 5.0 A
= 1.8 V (Typ) @ IC = 10 A
• Monolithic Construction
• Pb−Free Packages are Available

Show

MJH11017 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	SOT-93-3
Voltage Rating (DC)	-150 V
Current Rating	-15.0 A
Polarity	PNP
Power Dissipation	150 W
Breakdown Voltage (Collector to Emitter)	150 V
Continuous Collector Current	15A
hFE Min	400 @10A, 5V
hFE Max	15000
Input Power (Max)	150 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	15.2 mm
Size-Width	4.9 mm
Size-Height	12.2 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
Minimum Packing Quantity	30
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
