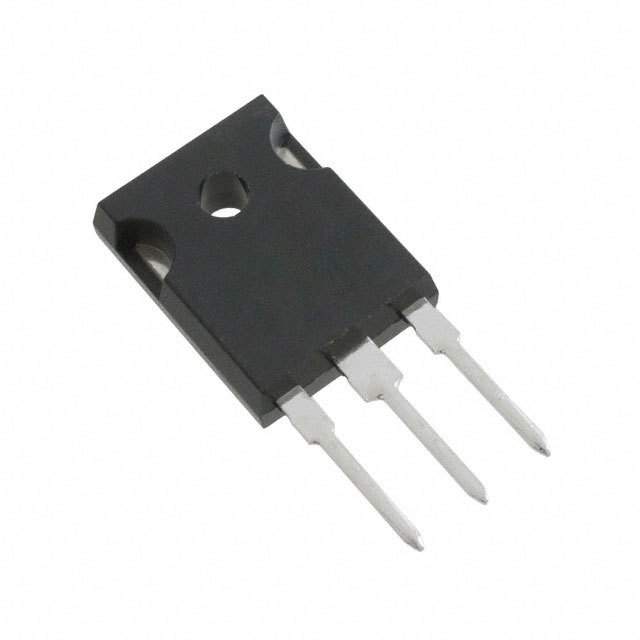

16 A COMPLEMENTARY SILICON POWER TRANSISTORS 250 V, 200 W
MJW21193 (PNP)
MJW21194 (NPN)
The MJW21193 and MJW21194 utilize Perforated Emitter technology and are specifically designed for high power audio output, disk head positioners and linear applications.
•Total Harmonic Distortion Characterized
•High DC Current Gain −hFE= 20 Min @ IC= 8 Adc
•Excellent Gain Linearity
•High SOA: 2.25 A, 80 V, 1 Second

Show

MJW21194 Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Through Hole
Case/Package	TO-247-3
Voltage Rating (DC)	250 V
Current Rating	16.0 A
Polarity	NPN
Power Dissipation	200 W
Gain Bandwidth Product	4 MHz
Breakdown Voltage (Collector to Emitter)	250 V
Continuous Collector Current	16A
hFE Min	20 @8A, 5V
Input Power (Max)	200 W
Operating Temperature (Max)	150 ℃
Operating Temperature (Min)	65 ℃
	Show
Size-Length	16.26 mm
Size-Width	5.3 mm
Size-Height	21.08 mm
Operating Temperature	-65℃ ~ 150℃ (TJ)
Product Lifecycle Status	Unknown
Packaging	Tube
RoHS	RoHS Compliant
Lead-Free Status	Contains Lead
ECCN Code	EAR99
