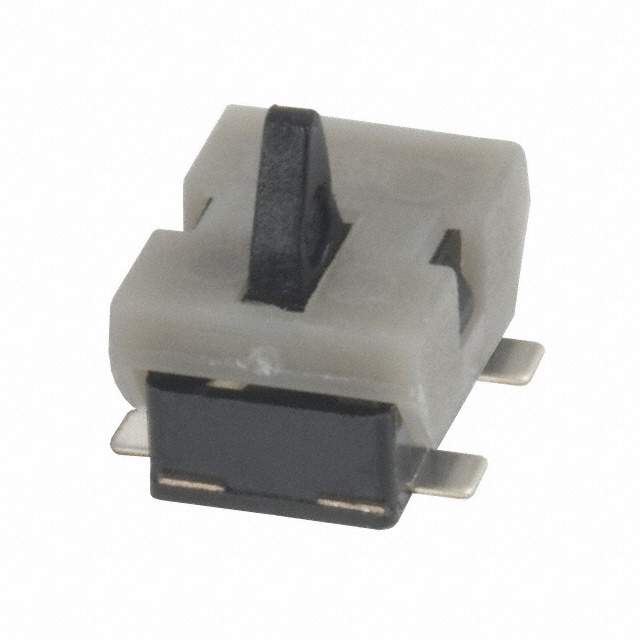

Image is for your reference only,please check specifications for details
- HDT0001 - C&K Components
-
Manufacturer:C&K Components
-
ManyChip's Part#:MC155455
-
Category:Switch
-
Package:SMD
-
Datasheet:Datasheet 3D Model
-
Description:C & K COMPONENTS HDT0001 Detector Switch, HDT Series, SPST-NO, Solder, 1mA, 5V, 3.35mm
-
Stock Locations:
-
Availability:0 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The HDT0001 is a Micro Mini Surface-mount Detect Switch with 35 grams maximum low actuation force. The HDT series switch has PA 46 actuator/cover/base, Ag over Ni plated stainless steel movable blade and Ag over Ni plated phosphor bronze terminal.
- Design allows top or side actuation
- 500mR Maximum initial contact resistance
- 100MR Minimum between adjacent contacts insulation resistance
HDT0001 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Case/Package | SMD |
| Voltage Rating (DC) | 5 V |
| Current Rating | 1mA (DC) |
| Insulation Resistance | 100 MΩ |
| Orientation | Vertical |
| Contacts Type | SPST-NO |
| Contact Resistance | 500 mΩ |
| Current Rating (Max) | 0.001A @5VDC |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Voltage Rating (DC Max) | 5 V |
| Maximum Contact Resistance (Max) | 500 mΩ |
| Show | |
| Size-Length | 3.5 mm |
| Size-Width | 3.5 mm |
| Size-Height | 3.35 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| REACH SVHC Compliance Edition | 2016/06/20 |
| HTS Code | 8536509065 |
| ECCN Code | EAR99 |
