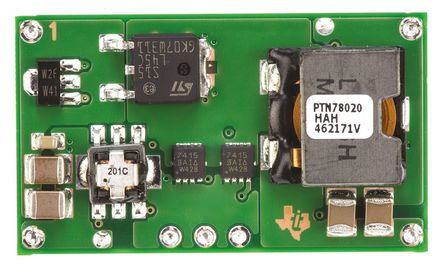

Image is for your reference only,please check specifications for details
- PTN78020HAH - TI
-
Manufacturer:TI
-
ManyChip's Part#:MC2669221
-
Category:DC to DC Converter, DC/DC Converter
-
Package:DIP-7
-
Datasheet:Datasheet 3D Model
-
Description:Module DC-DC 1Out 11.85V to 22V 6A 90W 7Pin DIP Module
-
Stock Locations:
-
Availability:1,545 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 372.58
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The PTN78020HAH is a 1-output 90W through-hole wide-input general purpose Adjustable Switching Regulator provides high-efficiency, step-down voltage conversion for loads of up to 6A. The PTN78020 is a series of high-efficiency, step-down integrated switching regulators (ISRs), that represent the third generation in the evolution of high-performance power modules designed for industrial use. The wide-input voltage range makes these modules suitable for a variety of applications. The PTN78020 is smaller and lighter than its predecessors and has either similar or improved electrical performance characteristics. The output voltage is set using a single, external resistor. It has under-voltage lockout, an integral on/off inhibit and includes an output current limit and over-temperature protection.
- High efficiency
- ON/OFF Inhibit
- Under-voltage lockout
- Output current limit
- Over-temperature shutdown
- -40 to 85°C Operating temperature range
PTN78020HAH Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 7 Pin |
| Case/Package | DIP-7 |
| Supply Voltage (DC) | 20.0 V |
| Number of Outputs | 1 Output |
| Input Voltage (DC) | 7.00V ~ 36.0V |
| Output Voltage | 11.85V ~ 22V |
| Output Current | 6 A |
| Number of Regulated Outputs | 1 Output |
| Output Power | 90 W |
| Switching Frequency | 440kHz ~ 660kHz |
| Topology | Buck |
| Input Voltage (Max) | 36 V |
| Input Voltage (Min) | 15 V |
| Input Voltage (DC Max) | 36 V |
| Input Voltage (DC Min) | 15 v |
| Output Voltage (Max) | 22 V |
| Output Voltage (Min) | 11.85 V |
| Output Current (Max) | 6 A |
| Input Power (Max) | 90 W |
| Input Power (Max) | 90 W |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 20 V |
| Input Voltage | 15V ~ 36V |
| Show | |
| Size-Length | 37.97 mm |
| Size-Width | 22.1 mm |
| Size-Height | 9 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tray |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
