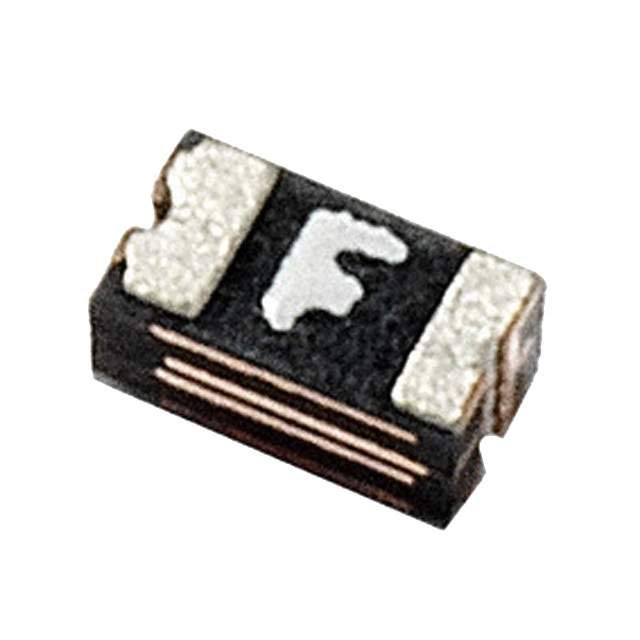

Image is for your reference only,please check specifications for details

0603L050YR - Littelfuse
Manufacturer:
Littelfuse
ManyChip's Part#:
MC5903839
Category:
Fuse
Package:
0603
Datasheet:
Datasheet 3D Model
Description:
PTC Resettable Fuse 0.5A(hold) 1A(trip) 6VDC 40A 0.5W(1/2W) 0.1s 0.1Ω SMD Solder Pad 1.8 X 1 X 1.55mm T/R
Stock Locations:
Availability:
1,667 pcs In Stock
MOQ:
1 pcs
Unit Price:
$ 0.1

Updated at 17/06/2025 10:30:15(UTC+8)

Certifications

ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.

Description

This 0603L050YR PTC resettable fuse from Littelfuse is ideal for low current and low voltage ratings. This device has a maximum current rating of 40. This resettable fuse has a minimum operating temperature of -40 °C and a maximum of 85 °C. It has 2 terminals. Mount your resettable fuse on a printed circuit board using surface mount technology to produce the most effective results. This product is 1.8(Max) mm long, 1.55(Max) mm tall and 1(Max) mm deep.

Show

0603L050YR Specifications

Attribute	Attribute Value

Datasheet	Datasheet
3D Model	3D Model
Mounting Style	Surface Mount
Case/Package (SI)	1608
Case/Package	0603
Voltage Rating (DC)	6.00 V
Operating Voltage	6 VDC
Time to Trip	100 ms
Power Dissipation	0.5 W
Resistance	0.68 Ω
Holding Current	500 mA
Trip Current	1 A
Current Rating (Max)	40 A
Holding Current (Max)	500 mA
Operating Temperature (Max)	85 ℃
Operating Temperature (Min)	-40 ℃
Voltage Rating (Max)	6 VDC
Voltage Rating	6 VDC
Operating Voltage (Max)	6 V
	Show
Size-Length	1.4 mm
Size-Width	0.6 mm
Size-Height	1.55 mm
Operating Temperature	-40℃ ~ 85℃
Product Lifecycle Status	Active
Packaging	Tape & Reel (TR)
RoHS	RoHS Compliant
Lead-Free Status	Lead Free
REACH SVHC Compliance Edition	2014/12/17
ECCN Code	EAR99
