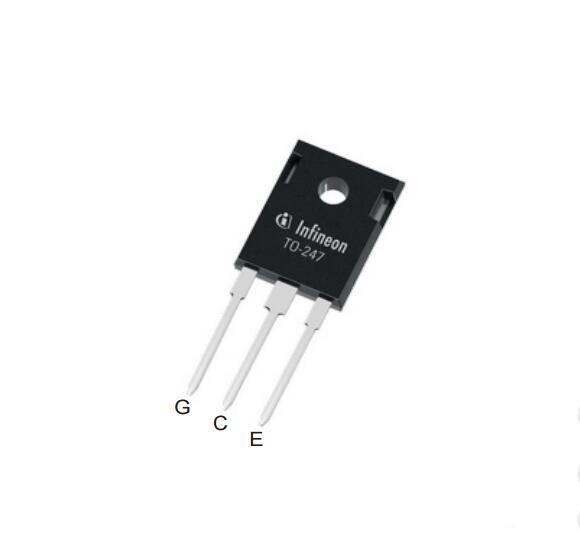

Image is for your reference only,please check specifications for details
- IKW30N65EL5 - Infineon Technologies AG
-
Manufacturer:Infineon Technologies AG
-
ManyChip's Part#:MC63944741
-
Category:IGBTs
-
Package:TO-247-3
-
Datasheet:Datasheet 3D Model
-
Description:Новое семейство IGBT Infineon L5 с низким напряжением насыщения (V CE(sat)) TRENCHSTOP™ специально оптимизировано для низких частот переключения, которые варьируются от 50 Гц до 20 кГц. Оптимизация профиля несущего сигнала инновационной технологии тонкого wafer-плоского структуры 55 µm TRENCHSTOP™ позволяет снизить потери на проводимость до исходно низкого уровня — 1,05 В для IGBT мощностью 30 А и 1,1 В для IGBT мощностью 75 А.
-
Stock Locations:
-
Availability:321 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 6.71
Updated at 31/10/2026 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Краткое описание характеристик:
- Самое низкое значение напряжения насыщения V CE(sat) — всего 1,05 В
- Низкие потери при переключении — 1,6 мДж при температуре 25°C для IGBT мощностью 30 А
- Высокая термостабильность электрических параметров — лишь 2% дрейфа при увеличении температуры T j с 25°C до 175°C
- Улучшенная эффективность благодаря снижению потерь при переключении на 20% в корпусе TO-247 с 4 выводами и кельвинным эмиттером
IKW30N65EL5 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 3 Pin |
| Case/Package | TO-247-3 |
| Operating Temperature (Max) | 175 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 227000 mW |
| Show | |
| Product Lifecycle Status | Active |
| Packaging | Rail, Tube |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
