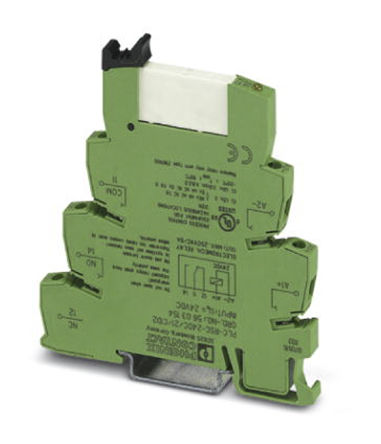

Image is for your reference only,please check specifications for details
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The Class I, Division 2 PLC-Relays are space-saving, pluggable, compact interface relays designed for use in Class I, Division 2 applications. The numerous voltage economical adaptability to your control system. These devices are UL/cUL Listed as process control equipment for use in Class I, Zone 2, AEx nC IIC, Ex nC IIC and Class I, Division 2, Groups A,B,C and D hazardous locations. This family of PLC-Relays can help eliminate the need for expensive explosion proof/purged enclosures and further expands Phoenix Contact"s role in the hazardous location control industry.
5603154 Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Current Rating | 6 A |
| Number of Outputs | 1 Output |
| Input Current | 9 mA |
| Contact Current Rating | 6 A |
| Coil Voltage | 24 VDC |
| Coil Current | 9 mA |
| Coil Voltage (DC) | 24 V |
| Number of Inputs | 1 Input |
| Operating Temperature (Max) | 60 ℃ |
| Operating Temperature (Min) | -25 ℃ |
| Show | |
| Size-Length | 80 mm |
| Size-Width | 94 mm |
| Size-Height | 94 mm |
| Contact Material | Silver Tin Oxide |
| Operating Temperature | -25℃ ~ 60℃ |
| Product Lifecycle Status | Active |
| Packaging | Bulk |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| HTS Code | 8536410050 |
| ECCN Code | EAR99 |
