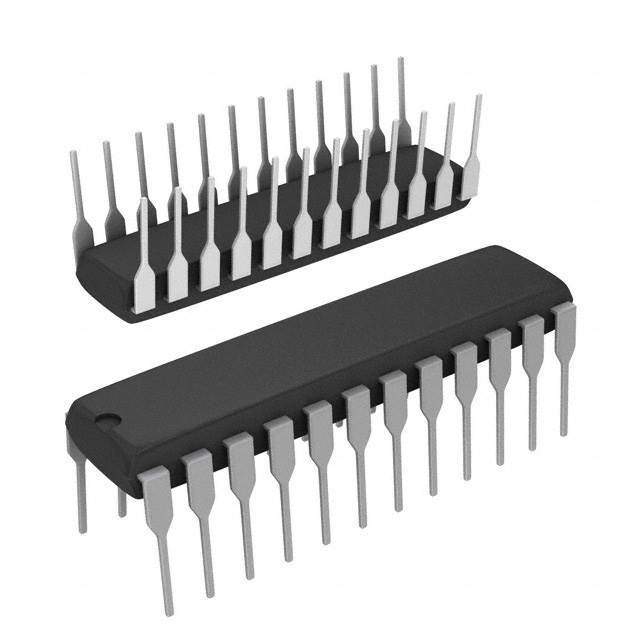

- AD7247JN - ADI
-
Manufacturer:ADI
-
ManyChip's Part#:MC1356639
-
Category:Digital to Analog, DAC IC
-
Package:PDIP-24
-
Datasheet:Datasheet 3D Model
-
Description:Res Thick Film 25M Ohm 10% 50W 300ppm/℃ Aluminum Housed Tapped Brass Ferrule Bolt-On Loose
-
Stock Locations:
-
Availability:1,090 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 28.03
Updated at 17/06/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- Look no further! The AD7247JN DAC converter from Analog Devices can help you easily obtain an analog signal from a digital one. This device"s digital interface is parallel. This device is based on R-2R architecture. It has a voltage output. This DAC has a resolution of 12bit. Its typical dual supply voltage is ±15 V, with a minimum of ±14.25 V and maximum of ±15.75 V. This DAC has a temperature range of -40 °C to 85 °C. This device comes in tube packaging. This device uses one or two power supplies.
AD7247JN Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Through Hole |
| Number of Pins | 24 Pin |
| Case/Package | PDIP-24 |
| Number of Outputs | 2 Output |
| Number of Channels | 2 Channel |
| Number of Bits | 12 Bit |
| Power Dissipation | 1000 mW |
| Resolution (Bits) | 12.0 Bit |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Power Dissipation (Max) | 1000 mW |
| Number of DACs | 2 DAC |
| Supply Voltage (Max) | 15 V |
| Supply Voltage (Min) | 12 V |
| Show | |
| Size-Length | 31.75 mm |
| Size-Width | 6.35 mm |
| Size-Height | 3.3 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tube |
| RoHS | Non-Compliant |
| Lead-Free Status | Contains Lead |
| Mil-Spec | No |
| ECCN Code | EAR99 |
