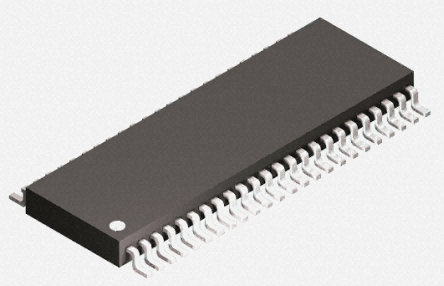

Image is for your reference only,please check specifications for details
- M74LCX16245DTR2G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC1169993
-
Category:Logic Controller, Logic IC
-
Package:TSSOP-48
-
Datasheet:Datasheet 3D Model
-
Description:74LCX Series 2.3 to 3.6V CMOS 16Bit Transceiver - TSSOP-48
-
Stock Locations:
-
Availability:295 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 1.5
Updated at 01/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The MC74LCX16245 is a high performance, non-inverting 16-bit transceiver operating from a 2.3 to 3.6V supply. The device is byte controlled. Each byte has separate Output Enable inputs which can be tied together for full 16-bit operation. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A Vspecification of 5.5V allows MC74LCX16245 inputs to be safely driven from 5V devices. The MC74LCX16245 is suitable for memory address driving and all TTL level bus oriented transceiver applications.4.5ns maximum propagation delays support high performance applications. Current drive capability is 24mA at both A and B ports. The Transmit/Receive (T/Rbarn) inputs determine the direction of data flowthrough the bi-directional transceiver. Transmit (active-HIGH) enables data from A ports to B ports; Receive (active-LOW) enables data from Bto A ports. The Output Enable inputs (OEn)bar, when HIGH, disable both A and B ports by placing them in a HIGH Z condition.
- Features
- ---
- |
- Designed for 2.3 to 3.6V VCC Operation
- 4.5ns Maximum tpd
- 5V Tolerant - Interface Capability With 5V TTL Logic
- Supports Live Insertion and Withdrawal
- IOFF Specification Guarantees High Impedance When VCC = 0V
- LVTTL Compatible
- LVCMOS Compatible
- 24mA Balanced Output Sink and Source Capability
- Near Zero Static Supply Current in All Three Logic States (20mA)
- Substantially Reduces System Power Requirements
- Latchup Performance Exceeds 500mA
- ESD Performance: Human Body Model >2000V;Machine Model >200V
- These are Pb-Free Devices
M74LCX16245DTR2G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 48 Pin |
| Case/Package | TSSOP-48 |
| Supply Voltage (DC) | 2.00V (min) |
| Capacitance | 7 pF |
| Halogen Free Status | Halogen Free |
| Number of Circuits | 2 Circuit |
| Number of Channels | 16 Channel |
| Number of Positions | 48 Position |
| Number of Bits | 8 Bit |
| Power Dissipation | 200 mW |
| Quiescent Current | 10 µA |
| Operating Temperature (Max) | 85 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Supply Voltage | 2V ~ 3.6V |
| Supply Voltage (Max) | 3.6 V |
| Supply Voltage (Min) | 2 V |
| Show | |
| Size-Length | 12.6 mm |
| Size-Width | 6.2 mm |
| Size-Height | 0.95 mm |
| Operating Temperature | -40℃ ~ 85℃ |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance Edition | 2015/12/17 |
| ECCN Code | EAR99 |
