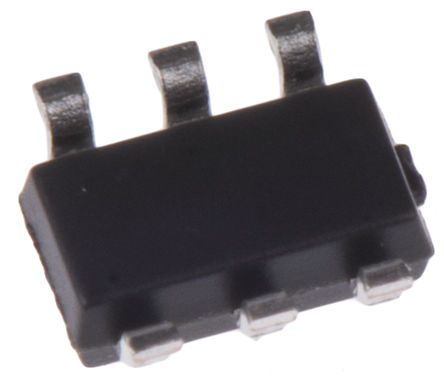

- NUP2201MR6T1G - ON Semiconductor
-
Manufacturer:ON Semiconductor
-
ManyChip's Part#:MC706538
-
Category:TVS Diode
-
Package:TSOT-23-6
-
Datasheet:Datasheet 3D Model
-
Description:TVS Diode, NUP22 Series, Unidirectional, 5V, 20V, TSOP, 6Pins
-
Stock Locations:
-
Availability:10,153 pcs In Stock
-
MOQ:1 pcs
-
Unit Price:$ 0.47
Updated at 02/11/2025 10:30:15(UTC+8)
Certifications
ManyChip is committed to product quality and safety with ISO 9001, ISO 13485, ISO 45001, UL, RoHS, CQC and REACH certifications.
Description
- The NUP2201MR6T1G is an ESD Protection TVS Diode with low clamping voltage. It is designed to protect high speed data lines from ESD, EFT and lightning.
- Low clamping voltage
- Low leakage
- IEC 61000-4-2 Level-4 ESD protection
- -40 to 125°C Operating temperature range
NUP2201MR6T1G Specifications
| Attribute | Attribute Value |
|---|---|
| Datasheet | Datasheet |
| 3D Model | 3D Model |
| Mounting Style | Surface Mount |
| Number of Pins | 6 Pin |
| Case/Package | TSOT-23-6 |
| Voltage Rating (DC) | 6.00 V |
| Operating Voltage | 5 V |
| Capacitance | 5 pF |
| Power Rating | 500 W |
| Breakdown Voltage | 6 V |
| Number of Circuits | 2 Circuit |
| Number of Channels | 2 Channel |
| Number of Positions | 6 Position |
| Power Dissipation | 500 W |
| Clamping Voltage | 20 V |
| Test Current | 1 mA |
| Peak Pulse Power | 500 W |
| Min Breakdown Voltage | 6 V |
| Reverse Breakdown Voltage | 6 V |
| Operating Temperature (Max) | 125 ℃ |
| Operating Temperature (Min) | -40 ℃ |
| Show | |
| Size-Length | 3 mm |
| Size-Width | 1.5 mm |
| Size-Height | 0.94 mm |
| Operating Temperature | -40℃ ~ 125℃ (TJ) |
| Product Lifecycle Status | Active |
| Packaging | Tape & Reel (TR) |
| RoHS | RoHS Compliant |
| Lead-Free Status | Lead Free |
| REACH SVHC Compliance | No SVHC |
| ECCN Code | EAR99 |
